5-826632-0 | AMP

Pin header, 100 pole, pitch 2.54 mm, straight, green, 5-826632-0

Order No.: 56F6260
EAN: 4099891001025
MPN:
5-826632-0
5-0826632-0
Series: AMPMODU

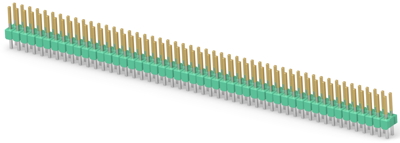

5-826632-0 AMP PCB Connection Systems Image 1

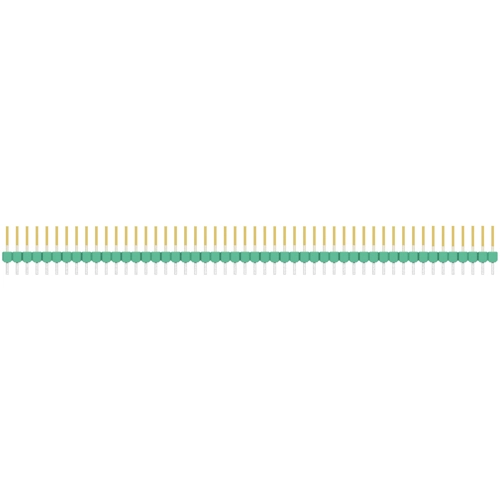

5-826632-0 AMP PCB Connection Systems Image 2
5-826632-0 AMP PCB Connection Systems Image 3
5-826632-0 AMP PCB Connection Systems Image 4
5-826632-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
12.5069 € *
Available: 90 pcs.
Available in 5 Days: 3,842 pcs. - if ordered today
Total Price:
12.51 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5069 €
5 pcs.
11.8643 €
10 pcs.
11.0908 €
25 pcs.
10.1150 €
*incl. VAT plus shipping costs
Subject to prior sale

Gold-plated, pin length B 6.7 mm, type ..-0826.

with 2.54 mm grid. Housing: polyester, green, compliant with UL 94 V-0, self-extinguishing. The number of contacts can be reduced as required by breaking them off.

Gold-plated pins in the contact area (0.8 µm gold over 1.3 µm Ni); Gold-plated zone (dimension F): 5.5 mm, tinned solder area (2.5 µm tin over 1.3 µm Ni). Dimension A: 12.4 mm. Dimension C: 2.9 mm.

Type: 5-0826632-0, 2 x 50-pole

Technical specifications
Filter Property Value
Connection plating tin-plated
Breakable Yes
Grid 2.54 mm
Orientation straight
Connection PCB connection
Contact type pin
Rated current 5 A
Additional parts equipped
Version pin header
Pin number 100 pole
Type of locking Yes
contact surface gold-plated
Number of rows 2
Colour green
Logistics
Property Value
Country of origin US
Customs tariff number 85366930
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
