5-826629-0 | AMP

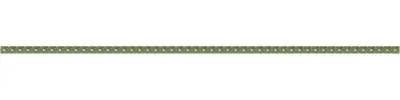

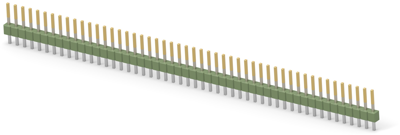

Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-826629-0

Order No.: 59F220
EAN: 4099891005207
MPN:
5-826629-0
5-0826629-0
Series: AMPMODU

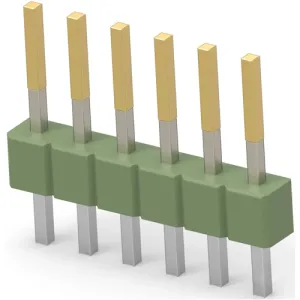

5-826629-0 AMP PCB Connection Systems Image 1
5-826629-0 AMP PCB Connection Systems Image 2
5-826629-0 AMP PCB Connection Systems Image 3
5-826629-0 AMP PCB Connection Systems Image 4
5-826629-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.7838 € *
Available: 11 pcs.
Available in 5 Days: 4,632 pcs. - if ordered today
Total Price:
4.78 € *
Price list
Quantity
Price per unit*
1 pcs.
4.7838 €
10 pcs.
4.4387 €
25 pcs.
4.1412 €
50 pcs.
3.7723 €
*incl. VAT plus shipping costs
Subject to prior sale

Single-row pin headers for PCB mounting, type TE Connectivity/AMP Modu II ..-0826.

With 2.54 mm grid. For Modu IV socket headers without interlock. Insulated housing made of thermoplastic polyester, green, compliant with UL 94 V-0; Contact types: tin bronze contacts, 0.8 µ selective gold-plated on nickel primer (dimension F) and tinned soldering side or brass contacts with tinned contact and solder area. The number of contacts can be reduced as required by breaking them off.

Gold-plated, pin length B 6.7 mm, type ..-0826.

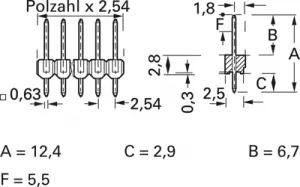

Straight pins, gold-plated in the contact area (0.8 µm Au over 1.3 µm Ni), tinned in the solder area (2.5 µm Sn over 1.3 µm Ni); Dimension A: 12.4 mm. Dimension C: 2.9 mm. Dimension F: 5.5 mm.

Type: 5-0826629-0, 50-pole

Technical specifications
Filter Property Value
Version pin header
Colour green
Type of locking Yes
Pin number 50 pole
Additional parts equipped
Breakable Yes
Connection PCB connection
Connection plating tin-plated
Contact type pin
Rated current 5 A
contact surface gold-plated
Orientation straight
Grid 2.54 mm
Number of rows 1
Logistics
Property Value
Country of origin JP
Customs tariff number 85366930
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
