5-825440-0 | AMP

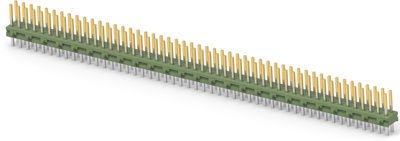

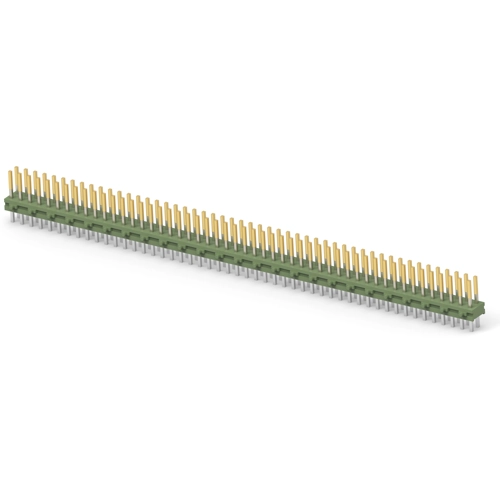

Pin header, 100 pole, pitch 2.54 mm, straight, green, 5-825440-0
Unit Price (€ / pc.)
15.3272 € *
Available in 5 Days: 648 pcs. - if ordered today
Total Price:
15.33 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3272 €
10 pcs.
14.2324 €
25 pcs.
13.2923 €
50 pcs.
12.0785 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5-825440-0, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Standard, Vertical, 100 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass, CuZn
- Housing Material: PBT GF, Polyester-GF
- Housing Color: green
- Orientation: straight
- Number of positions: 100
- Operating Temperature Range: -65 – 105 °C
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Breakable | Yes | |
| Number of rows | 2 | |
| Rated current | 5 A | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Pin number | 100 pole | |
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | Yes | |
| Connection | solder pin | |
| contact surface | gold-plated | |
| Colour | green | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
