5-825437-0 | AMP

Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-825437-0

Order No.: 59F320
EAN: 4099891005641
MPN:
5-825437-0
5-0825437-0
Series: AMPMODU

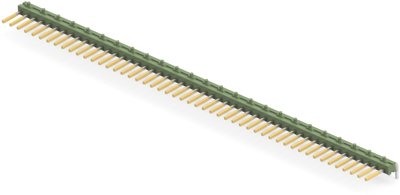

5-825437-0 AMP PCB Connection Systems Image 1
5-825437-0 AMP PCB Connection Systems Image 2
5-825437-0 AMP PCB Connection Systems Image 3
5-825437-0 AMP PCB Connection Systems Image 4
5-825437-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
6.8425 € *
Available: 122 pcs.
Total Price:
6.84 € *
Price list
Quantity
Price per unit*
1 pcs.
6.8425 €
10 pcs.
6.0214 €
100 pcs.
5.2717 €
250 pcs.
5.0694 €
1000 pcs.
4.7600 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin headers for PCB mounting, angled, single-row, TE Connectivity AMP Modu II

With 2.54 mm grid, with 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated, tinned solder pins. Dimensions: B 6.7 mm, C 2.9 mm, D 1.5 mm.

Type: 5-0825437-0

Number of poles: 50-pole

Technical specifications
Filter Property Value
Rated current 5 A
Type of locking Yes
Grid 2.54 mm
Connection plating tin-plated
Number of rows 1
Orientation straight
contact surface gold-plated
Version pin header
Colour green
Connection PCB connection
Breakable Yes
Pin number 50 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin NL
Customs tariff number 85366930
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
