5-825433-0 | AMP
Pin header, 50 pole, pitch 2.54 mm, straight, green, 5-825433-0
Unit Price (€ / pc.)
4.6886 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
4.69 € *
Price list
Quantity
Price per unit*
1 pcs.
4.6886 €
10 pcs.
4.2602 €
50 pcs.
3.9032 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin headers for PCB mounting, single-row, TE Connectivity AMP Modu II, type ..-0825../..-0828.

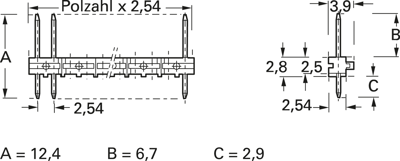

With 2.54 mm grid. Suitable for parallel stacking. With 0.63 x 0.63 mm solder pins and latching notches. Match Modu IV socket headers with interlock; Insulating body: polyester GV, green, inflammability to UL 94 V-0. Insertion zone 0.8 µm gold-plated or 2.5 µm tinned on nickel primer. Tinned solder pins. Dimensions: A 12.4 mm, B 6.7 mm, C 2.9 mm.
Straight single-row, type ..-0825../..-0828.
Technical attributes (type, number of poles, contact finish): 5-0825433-0, 50-pole, gold-plated
Technical specifications
| Number of rows | 1 | |
| Colour | green | |
| Rated current | 5 A | |
| contact surface | gold-plated | |
| Connection | PCB connection | |
| Breakable | Yes | |
| Additional parts | equipped | |
| Connection plating | tin-plated | |
| Grid | 2.54 mm | |
| Type of locking | Yes | |
| Version | pin header | |
| Contact type | pin | |
| Pin number | 50 pole | |
| Orientation | straight |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366930 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
