5-794678-4 | AMP

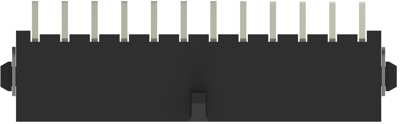

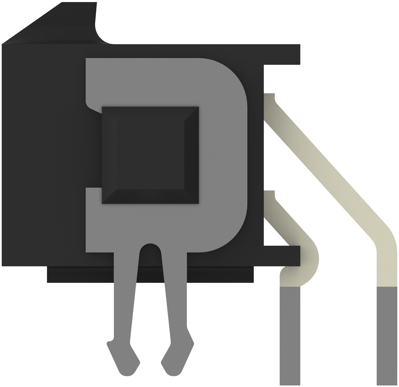

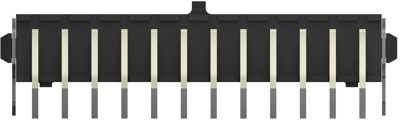

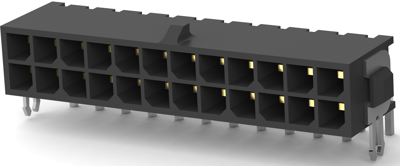

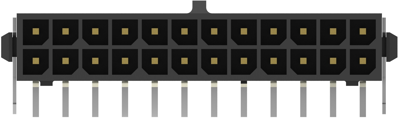

Pin header, 24 pole, pitch 3 mm, angled, black, 5-794678-4

Order No.: 72P0055
EAN: 4099891736682
MPN:
5-794678-4
5-794678-4 AMP PCB Connection Systems Image 1
5-794678-4 AMP PCB Connection Systems Image 2
5-794678-4 AMP PCB Connection Systems Image 3
5-794678-4 AMP PCB Connection Systems Image 4
5-794678-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.8318 € *
Available in 5 Days: 87 pcs. - if ordered today
Total Price:
19,178.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
5005 pcs.
3.8318 €

Power connector, 5-794678-4, AMP

The 5-794678-4 offers wire-to-wire and wire-to-board connections with contacts on a 3 mm centerline and current ratings up to 5 Amps max. This product includes the appliance, instrumentation, industrial machinery, home equipment, and security system industries.

Features

  • Dual beam receptacle contact design for improved reliabilit

Applications

  • Household appliances
  • Lighting
  • Factory automation
  • Data storage
  • Garage door opener
  • Security system
Technical specifications
Filter Property Value
Grid 3 mm
Version pin header
contact surface gold-plated
Colour black
Number of rows 1
Pin number 24 pole
Connection plating tin-plated
Rated voltage 250 V
Type of locking Yes
Orientation angled
Contact type pin
Connection SMD
Rated current 5 A
Additional parts equipped
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
