5-794636-0 | AMP

Pin header, 20 pole, pitch 3 mm, straight, black, 5-794636-0

Order No.: 34P9278
EAN: 4099889917901
MPN:
5-794636-0

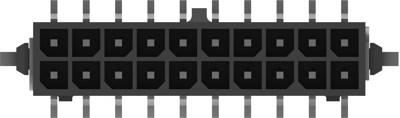

5-794636-0 AMP PCB Connection Systems Image 1

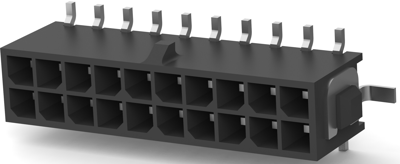

5-794636-0 AMP PCB Connection Systems Image 2

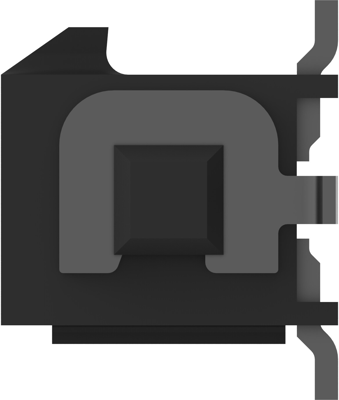

5-794636-0 AMP PCB Connection Systems Image 3

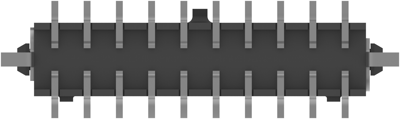

5-794636-0 AMP PCB Connection Systems Image 4
5-794636-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.1297 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
1,095.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
350 pcs.
3.1297 €

PCB Connection System, 5-794636-0, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 20 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: High Temperature Nylon
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 20
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 3 mm
  • Row-to-Row Spacing: 3 mm [0.118 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Filter Property Value
Connection plating tin-plated
Connection SMD
Colour black
Additional parts equipped
Pin number 20 pole
Contact type pin
Orientation straight
Type of locking Yes
Rated voltage 250 V
contact surface tin-plated
Version pin header
Rated current 5 A
Number of rows 2
Grid 3 mm
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
