5-794630-4 | AMP

Pin header, 24 pole, pitch 3 mm, straight, black, 5-794630-4

Order No.: 71F5786
EAN: 4099891010669
MPN:
5-794630-4
5-0794630-4

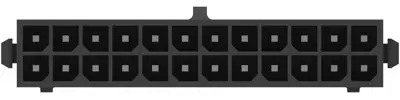

5-794630-4 AMP PCB Connection Systems Image 1

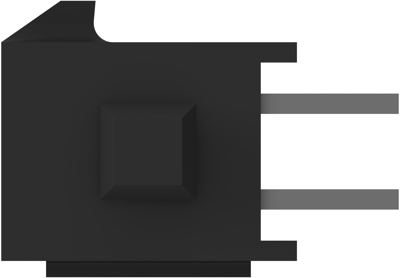

5-794630-4 AMP PCB Connection Systems Image 2

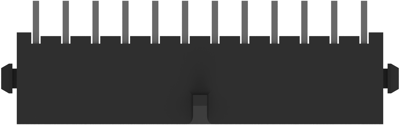

5-794630-4 AMP PCB Connection Systems Image 3

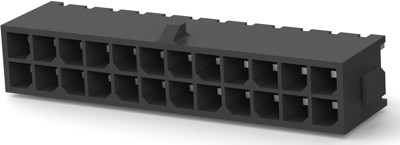

5-794630-4 AMP PCB Connection Systems Image 4
5-794630-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
4.4863 € *
Available in 5 Days: 163 pcs. - if ordered today
Total Price:
4.49 € *
Price list
Quantity
Price per unit*
1 pcs.
4.4863 €
10 pcs.
4.1293 €
50 pcs.
3.7128 €
100 pcs.
3.3439 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable connectors, 2- to 24-pole, 3.0 mm grid, type TE Connectivity/AMP Micro Mate-N-Lok.

3.0 mm grid, single- and dual-row; Rated voltage: 250 V. Rated current: max. 5.0 A. Insulation resistance: min. 1000 Mohm. Contact resistance: max. 20 mohm. Insertion force (pro contact): 6.67 N. Operating temperatures: –40 to +105 °C. Certifications: UL, CSA.

PCB sockets, dual-row, straight, type ..-0794630.

Housing: Nylon, high temperature-resistant, flame retardant to UL 94 V-0. Contacts: tinned brass.

Technical attributes (type, number of poles, length): 5-0794630-4, 24-pole, 40.0 mm

Technical specifications
Filter Property Value
Rated voltage 250 V
Rated current 5 A
Type of locking Yes
Grid 3 mm
Connection plating tin-plated
Number of rows 2
Orientation straight
contact surface tin-plated
Version pin header
Colour black
Connection solder pin
Pin number 24 pole
Additional parts equipped
Contact type pin
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
