5-794627-4 | AMP

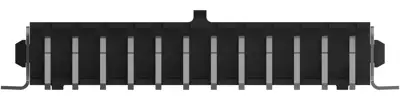

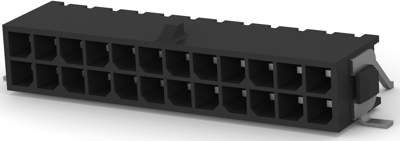

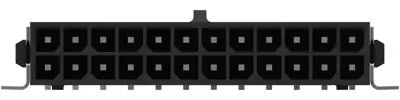

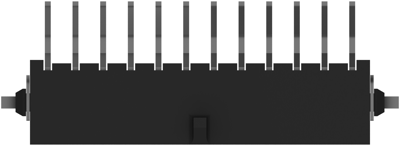

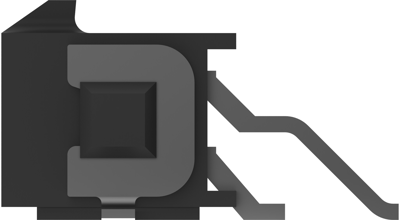

Pin header, 24 pole, pitch 3 mm, straight, black, 5-794627-4
Order No.: 34P9288
EAN: 4099889918007
MPN:
5-794627-4
Unit Price (€ / pc.)
3.8080 € *
Standard delivery time from the manufacturer is: 21 Weeks
PCB Connection System, 5-794627-4, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 24 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: angled
- Number of positions: 24
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.181 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact type | pin | |
| Orientation | straight | |
| Rated voltage | 250 V | |
| Additional parts | equipped | |
| Version | pin header | |
| Rated current | 5 A | |
| Grid | 3 mm | |
| Type of locking | Yes | |
| Colour | black | |
| Connection | SMD | |
| contact surface | tin-plated | |
| Number of rows | 2 | |
| Pin number | 24 pole | |
| Connection plating | tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
