5-794619-2 | AMP

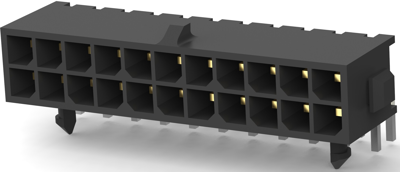

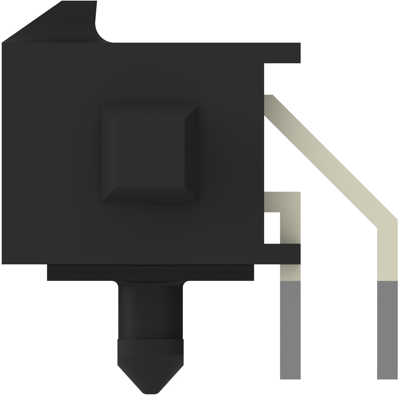

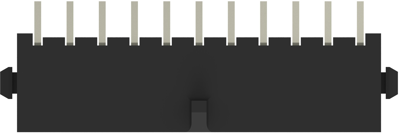

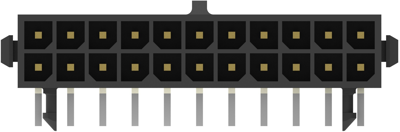

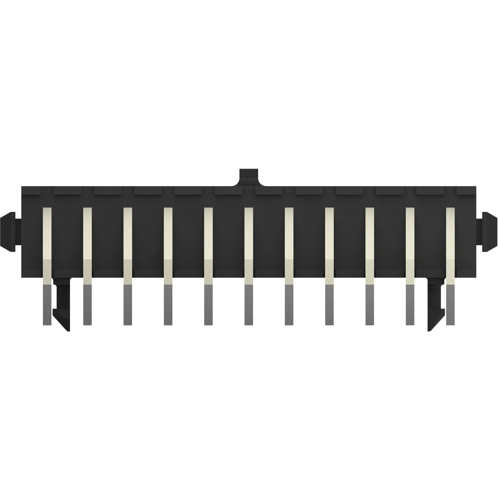

Pin header, 22 pole, pitch 3 mm, straight, black, 5-794619-2
Order No.: 34P9281
EAN: 4099889917932
MPN:
5-794619-2
Unit Price (€ / pc.)
6.7949 € *
Available in 5 Days: 185 pcs. - if ordered today
Total Price:
6.79 € *
Price list
Quantity
Price per unit*
1 pcs.
6.7949 €
10 pcs.
6.3070 €
25 pcs.
5.8905 €
50 pcs.
5.3550 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5-794619-2, AMP
Wire-to-Board, Printed Circuit Board, Right Angle, 22 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: angled
- Number of positions: 22
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Connection plating | tin-plated | |
| Colour | black | |
| Rated voltage | 250 V | |
| Connection | solder pin | |
| Pin number | 22 pole | |
| contact surface | gold-plated | |
| Type of locking | Yes | |
| Additional parts | equipped | |
| Grid | 3 mm | |
| Version | pin header | |
| Number of rows | 2 | |
| Contact type | pin | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
