5-6450830-2 | AMP

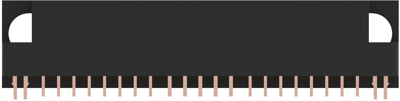

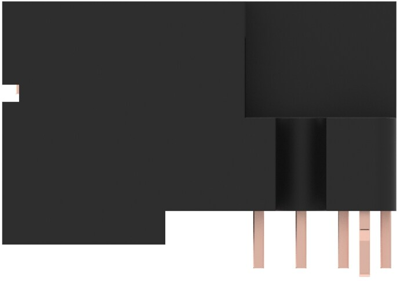

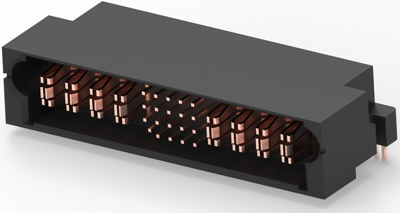

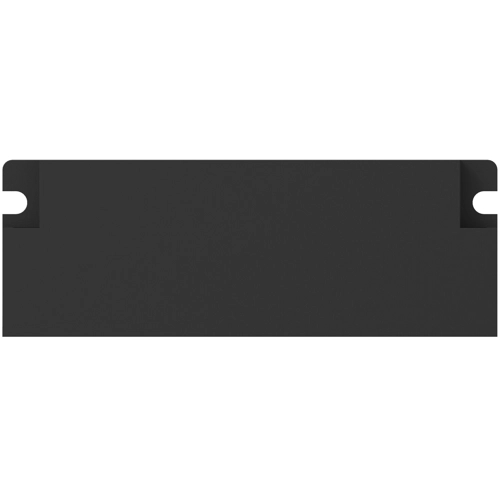

Pin header, 28 pole, pitch 5.08 mm, angled, black, 5-6450830-2
Order No.: 71P9984
EAN: 4099891736514
MPN:
5-6450830-2
Unit Price (€ / pc.)
19.9563 € *
Available in 5 Days: 1,188 pcs. - if ordered today
Total Price:
199.56 € *
Price list
Quantity
Price per unit*
10 pcs.
19.9563 €
25 pcs.
19.1828 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 5-6450830-2, AMP
Rectangular power connector, Connector assembly, Plug, Board-to-Board, 28 Position, 5.08 mm Centerline, Printed circuit board, UL 94V-0.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 28 pole | |
| Type of locking | Yes | |
| Rated voltage | 60 V | |
| Connection plating | tin-plated | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 5.08 mm | |
| Number of rows | 4 | |
| Additional parts | equipped | |
| Connection | solder connection | |
| Rated current | 50 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
