5-640622-0 | AMP

Socket header, 20 pole, pitch 2.54 mm, straight, blue, 5-640622-0

Order No.: 35P2244
EAN: 4099889931280
MPN:
5-640622-0

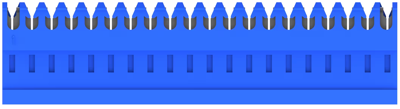

5-640622-0 AMP PCB Connection Systems Image 1

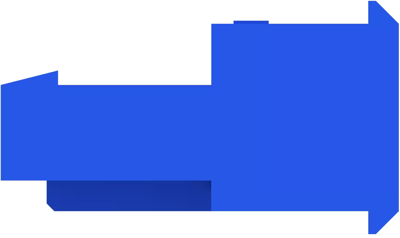

5-640622-0 AMP PCB Connection Systems Image 2

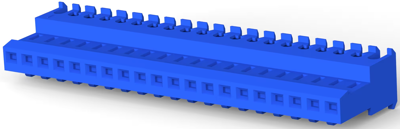

5-640622-0 AMP PCB Connection Systems Image 3

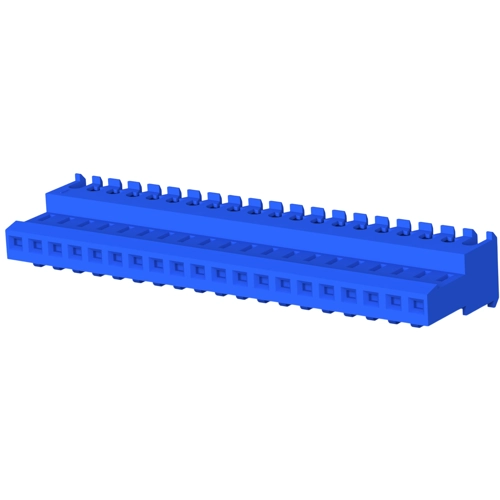

5-640622-0 AMP PCB Connection Systems Image 4
5-640622-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.7136 € *
Standard delivery time from the manufacturer is: 39 Weeks
Total Price:
5,140.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
3000 pcs.
1.7136 €

PCB Connection System, 5-640622-0, AMP

Wire-to-Board, Wire & Cable, 20 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Housing Material: Nylon
  • Housing Color: blue
  • Number of positions: 20
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Filter Property Value
Rated current 5 A
Rated voltage 250 V
Version socket header
Number of rows 1
Orientation straight
Additional parts equipped
contact surface tin-plated
Pin number 20 pole
Grid 2.54 mm
Type of locking Yes
Contact type socket
Colour blue
Connection plating tin-plated
Connection IDC connection
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
