5-534998-4 | AMP

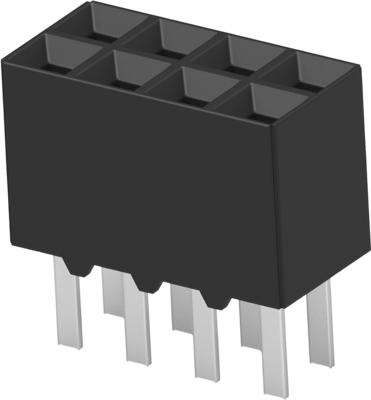

Socket header, 8 pole, pitch 2.54 mm, straight, black, 5-534998-4

Order No.: 59F858
MPN:
5-534998-4
Series: AMPMODU
5-534998-4 AMP PCB Connection Systems Image 1
5-534998-4 AMP PCB Connection Systems Image 2
5-534998-4 AMP PCB Connection Systems Image 3
5-534998-4 AMP PCB Connection Systems Image 4
5-534998-4 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9635 € *
Available in 5 Days: 4,319 pcs. - if ordered today
Total Price:
1.96 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9635 €
10 pcs.
1.8207 €
50 pcs.
1.6779 €
100 pcs.
1.5232 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 5-534998-4, TE Connectivity

PCB Mount Receptacle, Vertical, Board-to-Board, 8 Position, 2.54 mm Centerline, Gold (Au), Through Hole - Solder, Modu Connector System.

Technical specifications
Connection plating tin-plated
Rated voltage 333 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 2 A
Pin number 8 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 2
Grid 2.54 mm
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
