5-534206-6 | AMP

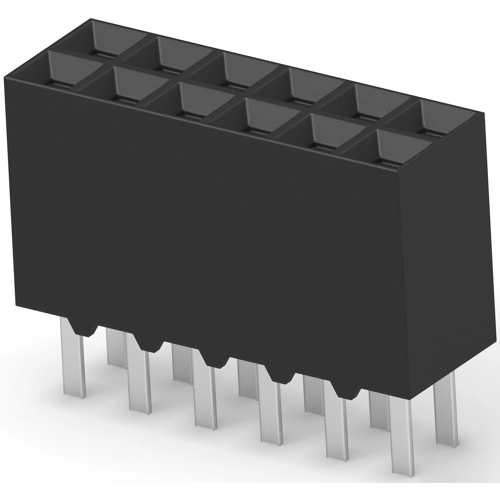

Socket header, 12 pole, pitch 2.54 mm, straight, black, 5-534206-6

Order No.: 37P6189
EAN: 4099889960211
MPN:
5-534206-6
Series: AMPMODU

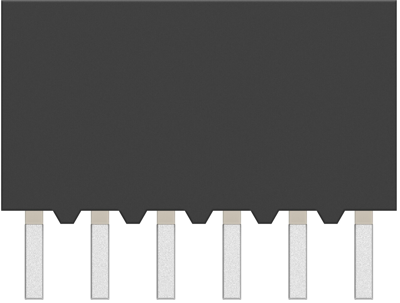

5-534206-6 AMP PCB Connection Systems Image 1

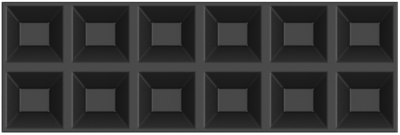

5-534206-6 AMP PCB Connection Systems Image 2

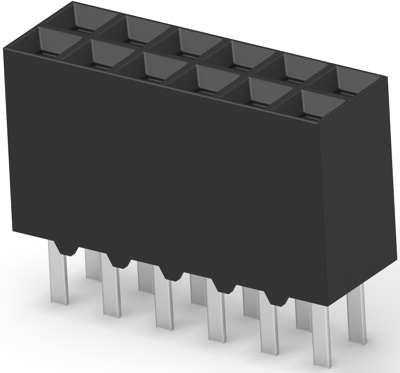

5-534206-6 AMP PCB Connection Systems Image 3

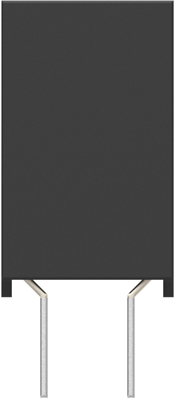

5-534206-6 AMP PCB Connection Systems Image 4

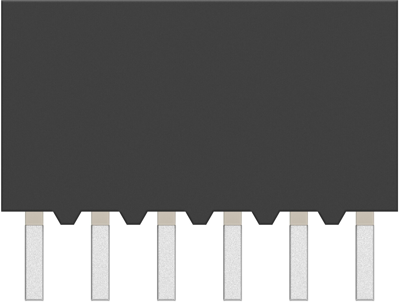

5-534206-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.8802 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
4,174.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
2220 pcs.
1.8802 €

PCB Connection System, 5-534206-6, AMP

Board-to-Board, Printed Circuit Board, Vertical, 12 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 12
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Connection plating tin-plated
Rated voltage 333 V
Version socket header
contact surface gold-plated
Connection solder pin
Contact type socket
Additional parts equipped
Rated current 2 A
Pin number 12 pole
Colour black
Type of locking Yes
Orientation straight
Number of rows 2
Grid 2.54 mm
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
