5-534206-5 | AMP

Socket header, 10 pole, pitch 2.54 mm, straight, black, 5-534206-5

Order No.: 37P6187
EAN: 4099889960198
MPN:
5-534206-5
Series: AMPMODU

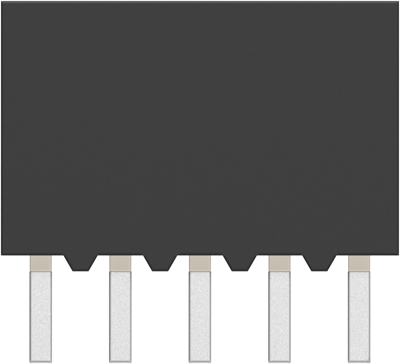

5-534206-5 AMP PCB Connection Systems Image 1

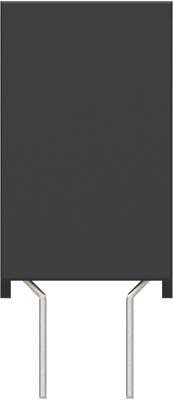

5-534206-5 AMP PCB Connection Systems Image 2

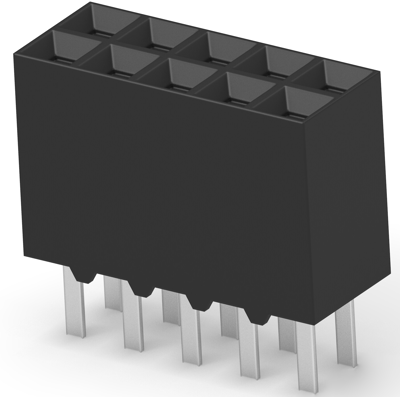

5-534206-5 AMP PCB Connection Systems Image 3

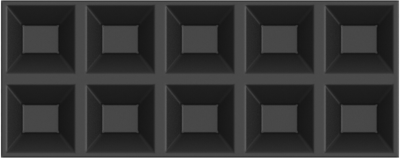

5-534206-5 AMP PCB Connection Systems Image 4
Image may differ
Unit Price (€ / pc.)
1.0472 € *
Available in 5 Days: 418 pcs. - if ordered today
Total Price:
2,827.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
2700 pcs.
1.0472 €

PCB Connection System, 5-534206-5, AMP

Board-to-Board, Printed Circuit Board, Vertical, 10 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Female
  • Contact Base Material: Phosphor Bronze
  • Housing Material: Polyester - GF
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 10
  • Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
  • Insulation Resistance: 5000 MΩ
  • Centerline (Pitch): 2.54 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Version socket header
Pin number 10 pole
Type of locking Yes
Connection plating tin-plated
Rated voltage 333 V
Contact type socket
Connection solder pin
Number of rows 2
Orientation straight
Additional parts equipped
Rated current 2 A
Grid 2.54 mm
contact surface gold-plated
Colour black
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
