5-5179010-3 | AMP

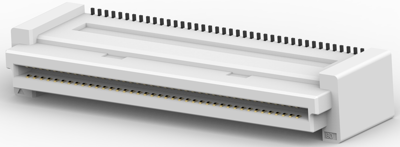

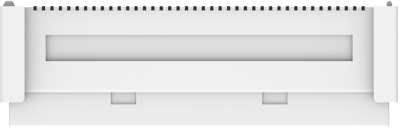

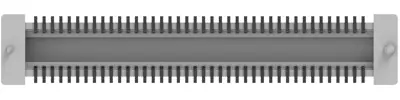

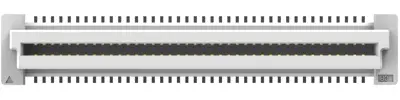

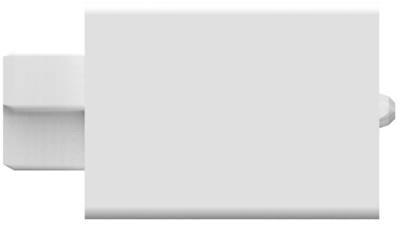

Socket header, 80 pole, pitch 0.8 mm, straight, natural, 5-5179010-3
Unit Price (€ / pc.)
5.1527 € *
Available: 0 pcs.
Available in 5 Days: 287 pcs.
Leadtime: 10 Weeks **
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7481 €
50 pcs.
4.2721 €
100 pcs.
3.8437 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Connection System, 5-5179010-3, AMP
Board-to-Board, Printed Circuit Board, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Matte
- Housing Color: natural
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -40 – 125 °C [-40 – 257 °F]
- Insulation Resistance: 2 MΩ
- Centerline (Pitch): 0.8 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Connection | SMD | |
| Connection plating | verzinnt | |
| Number of rows | 2 | |
| Version | Buchsenleiste | |
| Additional parts | bestückt | |
| Colour | natur | |
| Contact type | Buchse | |
| contact surface | vergoldet | |
| Rated voltage | 100 V | |
| Rated current | 500 mA | |
| Orientation | gerade | |
| Pin number | 80-polig | |
| Grid | 0.8 mm |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85366930 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
