5-1747147-3 | AMP

Socket header, 3 pole, pitch 10.16 mm, straight, black, 5-1747147-3

Order No.: 59F819
MPN:
5-1747147-3

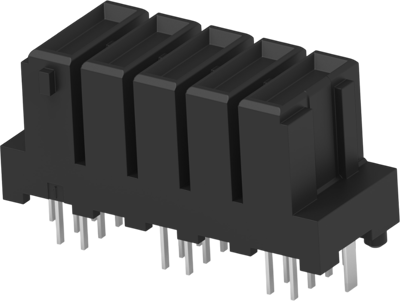

5-1747147-3 AMP PCB Connection Systems Image 1

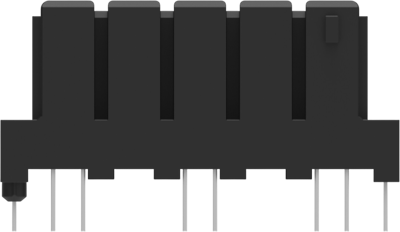

5-1747147-3 AMP PCB Connection Systems Image 2

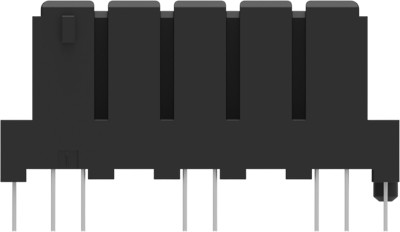

5-1747147-3 AMP PCB Connection Systems Image 3

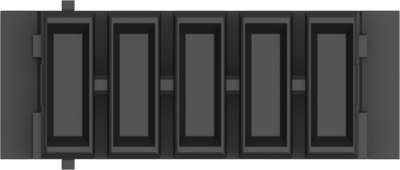

5-1747147-3 AMP PCB Connection Systems Image 4

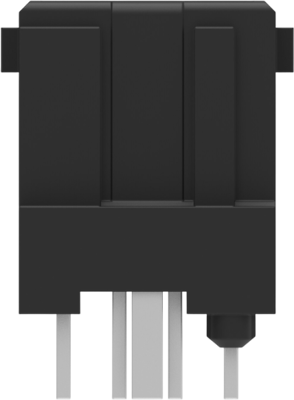

5-1747147-3 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
25.0495 € *
Available in 5 Days: 194 pcs. - if ordered today
Total Price:
25.05 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0495 €
5 pcs.
23.7643 €
10 pcs.
22.2292 €
25 pcs.
20.2657 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 5-1747147-3, AMP

PCB Mount Receptacle, Vertical, Board-to-Board, 3 Position, 10.16 mm Centerline, Gold (Au), Through Hole - Solder.

Technical specifications
Filter Property Value
Pin number 3 pole
contact surface gold-plated
Contact type socket
Number of rows 1
Connection solder connection
Colour black
Grid 10.16 mm
Rated current 20 A
Orientation straight
Connection plating tin-plated
Version socket header
Type of locking Yes
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
