5-1735480-3 | AMP

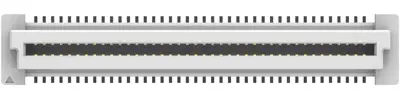

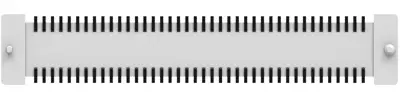

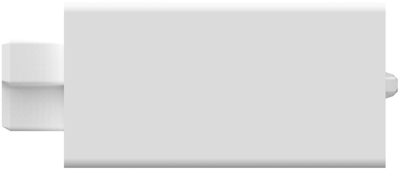

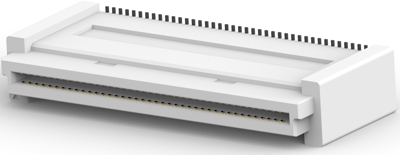

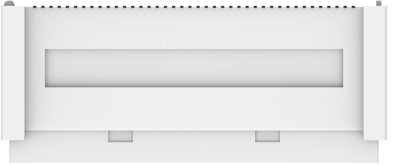

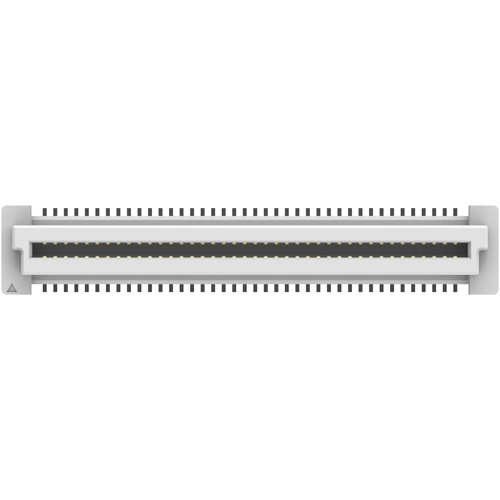

Socket header, 80 pole, pitch 0.8 mm, straight, natural, 5-1735480-3
Unit Price (€ / pc.)
6.9377 € *
Available: 0 pcs.
Available in 5 Days: 4,608 pcs.
Leadtime: 19 Weeks **
Total Price:
333.01 € *
Price list
Quantity
Price per unit*
48 pcs.
6.9377 €
84 pcs.
6.8068 €
*incl. VAT plus shipping costs
**Subject to prior sale
PCB Header, 5-1735480-3, AMP
PCB Mount receptacle, Vertical, Board-to-Board, 80 Position, 0.8 mm Centerline, Gold, Surface mount, Signal, Natural.
Technical specifications
| Colour | natural | |
| contact surface | gold-plated | |
| Rated current | 0.5 A | |
| Grid | 0.8 mm | |
| Connection plating | tin-plated | |
| Pin number | 80 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | SMD | |
| Contact type | socket | |
| Rated voltage | 100 V | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
