5-147424-5 | AMP

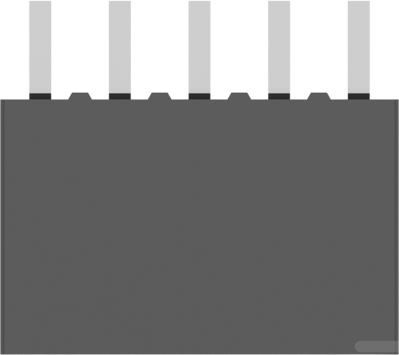

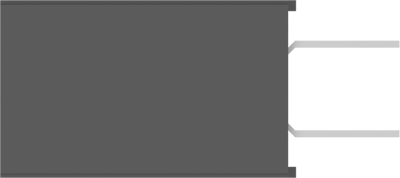

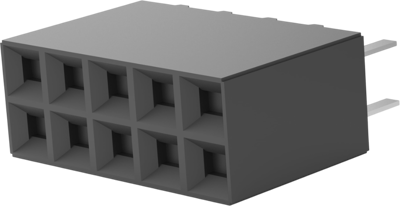

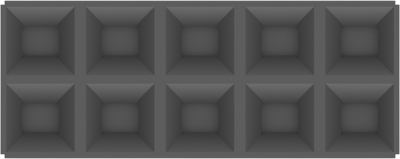

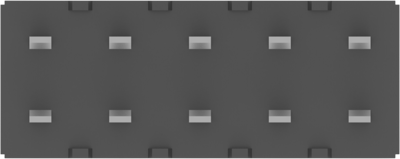

Socket header, 10 pole, pitch 2.54 mm, straight, black, 5-147424-5
Unit Price (€ / pc.)
1.5946 € *
Available in 5 Days: 6,275 pcs. - if ordered today
Total Price:
7.97 € *
Price list
Quantity
Price per unit*
5 pcs.
1.5946 €
10 pcs.
1.4756 €
25 pcs.
1.3804 €
50 pcs.
1.2495 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Mount Receptacle, 5-147424-5, AMP
PCB Mount Receptacle, Vertical, Board-to-Board, 10 Position, 2.54 mm Centerline, Gold (Au), Through Hole - Solder, Signal, Black, Box / Tube.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| Contact type | socket | |
| Connection plating | tin-plated | |
| contact surface | gold-plated | |
| Version | socket header | |
| Rated current | 2 A | |
| Rated voltage | 333 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Colour | black | |
| Pin number | 10 pole | |
| Connection | solder connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
