5-146850-1 | AMP

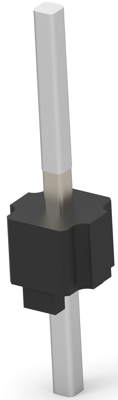

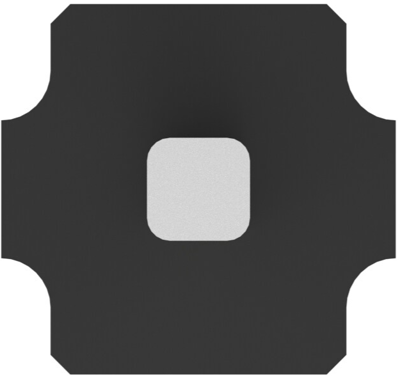

Pin header, 10 pole, pitch 2.54 mm, straight, black, 5-146850-1
Unit Price (€ / pc.)
0.0559 € *
Available in 5 Days: 100,000 pcs. - if ordered today
PCB Connection System, 5-146850-1, AMP
Board-to-Board, Printed Circuit Board, Breakaway, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Connection | solder pin | |
| Number of rows | 1 | |
| Orientation | straight | |
| Connection plating | tin-lead | |
| Type of locking | Yes | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Pin number | 10 pole | |
| Contact type | pin | |
| Additional parts | equipped | |
| contact surface | tin-plated | |
| Colour | black | |
| Breakable | Yes | |
| Version | pin header |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | AT |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
