5-1123723-4 | AMP

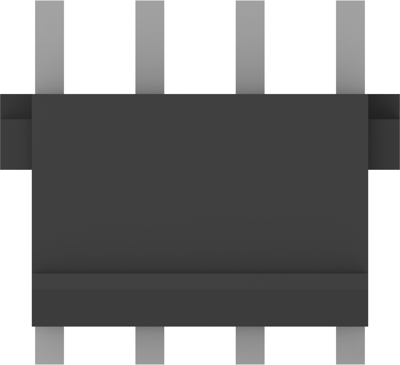

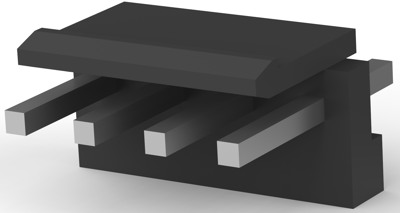

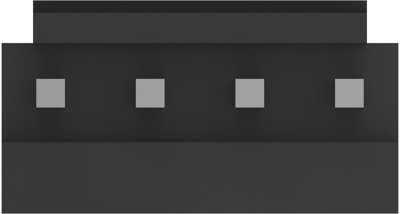

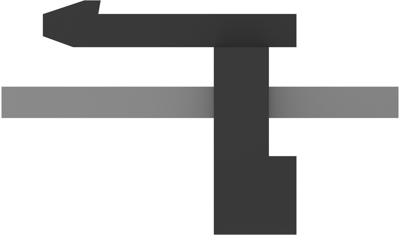

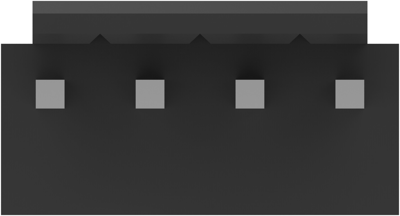

Pin header, 4 pole, pitch 3.96 mm, straight, black, 5-1123723-4
Unit Price (€ / pc.)
0.1559 € *
Standard delivery time from the manufacturer is: 14 Weeks
PCB Connection System, 5-1123723-4, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 4 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: PBT GF
- Housing Color: black
- Orientation: straight
- Number of positions: 4
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Rated current: 8 A
- Centerline (Pitch): 3.96 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 3.96 mm | |
| Pin number | 4 pole | |
| Colour | black | |
| Connection plating | tin-plated | |
| Contact type | pin | |
| Rated current | 8 A | |
| Version | pin header | |
| Connection | solder pin | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 250 V | |
| contact surface | tin-plated | |
| Orientation | straight | |
| Type of locking | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | CZ |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
