5-104935-6 | AMP

Pin header, 5 pole, pitch 2.54 mm, angled, black, 5-104935-6

Order No.: 71F5566
EAN: 4099891009854
MPN:
5-104935-6
5-0104935-6
Series: AMPMODU

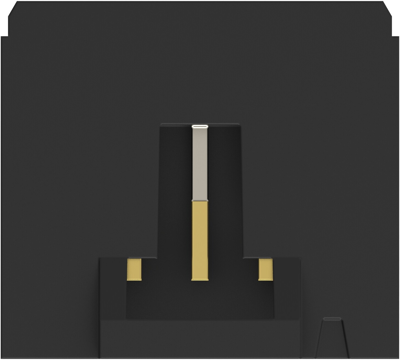

5-104935-6 AMP PCB Connection Systems Image 1

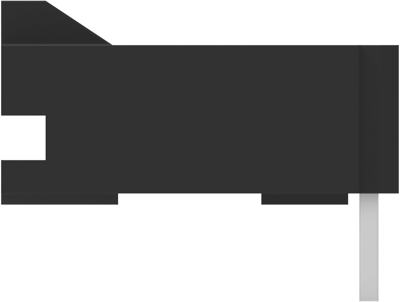

5-104935-6 AMP PCB Connection Systems Image 2

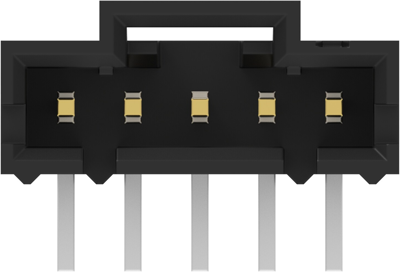

5-104935-6 AMP PCB Connection Systems Image 3

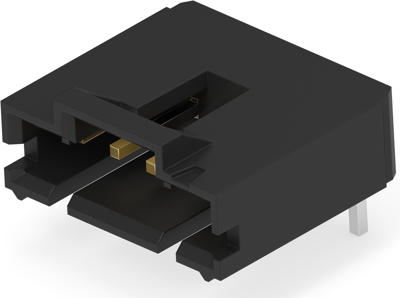

5-104935-6 AMP PCB Connection Systems Image 4

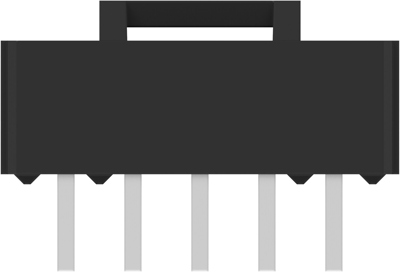

5-104935-6 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.5224 € *
Standard delivery time from the manufacturer is: 33 Weeks
Total Price:
3.52 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5224 €
10 pcs.
3.2368 €
50 pcs.
2.9155 €
100 pcs.
2.6180 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connectors for PCBs, wiith 90° angled solder pins, type 5-0104935.

Without PCB fastener, with pin protection, polarized and interlocking.

Certifications: UL and CSA

Housing: thermoplastic, black, according to UL 94 V-0

Contacts: copper alloy, selective gold-plating on the contact surface, tinned connector surface

Type: 5 - 0104935 - 6, 5 - pole

Technical specifications
Colour black
Breakable No
Type of locking Yes
contact surface gold-plated
Rated current 3 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 5 pole
Version pin header
Additional parts equipped
Orientation angled
Connection solder pin
Contact type pin
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366930
Original Packaging Bar with 35 pieces
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
