5-104895-8 | AMP

Pin header, 80 pole, pitch 1.27 mm, angled, black, 5-104895-8

Order No.: 71P9270
EAN: 4099891734886
MPN:
5-104895-8
Series: J1MAT

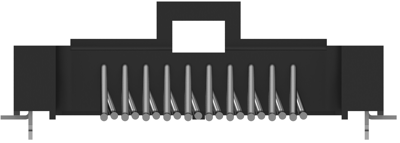

5-104895-8 AMP PCB Connection Systems Image 1

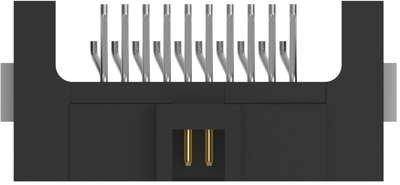

5-104895-8 AMP PCB Connection Systems Image 2

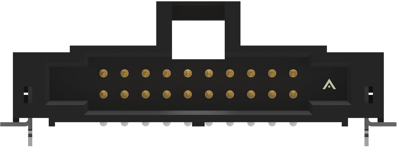

5-104895-8 AMP PCB Connection Systems Image 3

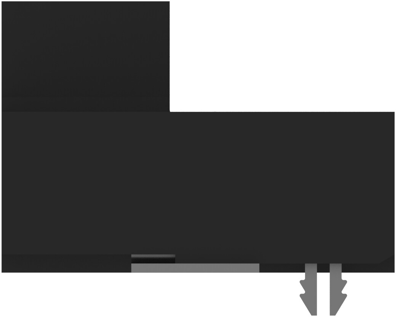

5-104895-8 AMP PCB Connection Systems Image 4
5-104895-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
20.3490 € *
Available in 5 Days: 1,140 pcs. - if ordered today
Total Price:
20.35 € *
Price list
Quantity
Price per unit*
1 pcs.
20.3490 €
10 pcs.
18.7306 €
25 pcs.
16.8504 €
50 pcs.
15.1725 €
*incl. VAT plus shipping costs
Subject to prior sale

Pin header, 5-104895-8, AMP

The 5-104895-8 is a PCB Mount header, suitable for high-density systems. This product enables free drainage of flux cleaning solution with incorporated stand-offs. Also improves soldering process with a mechanical hold-down feature.

Applications

  • Servo Drives
  • Building and home automation devices
  • Factory automation
  • Robotics
  • Machine tools
  • Test / Measurement equipment
  • Telecommunication equipment
  • Storage equipment
Technical specifications
Colour black
Type of locking Yes
contact surface gold-plated
Rated current 0.5 A
Grid 1.27 mm
Connection plating tin-plated
Pin number 80 pole
Version pin header
Additional parts equipped
Orientation angled
Connection SMD
Contact type pin
Rated voltage 30 V
Number of rows 2
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
