5-104549-9 | AMP

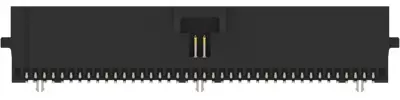

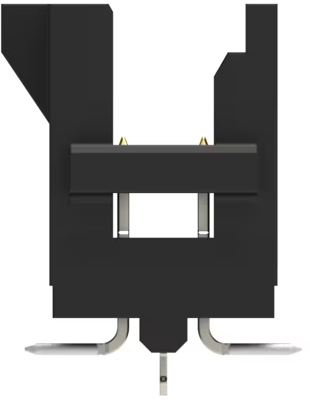

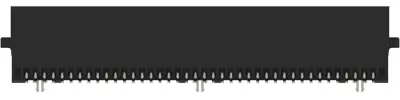

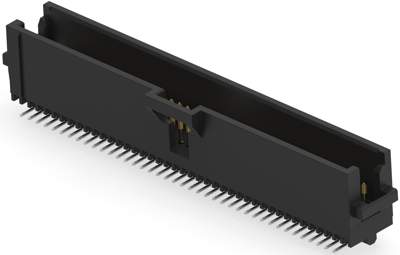

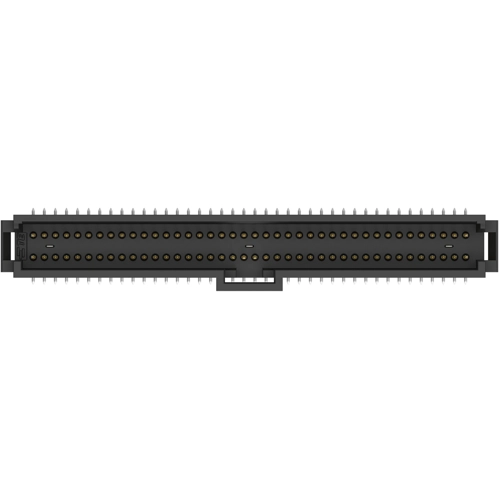

Pin header, 80 pole, pitch 1.27 mm, straight, black, 5-104549-9
Unit Price (€ / pc.)
51.7412 € *
Available in 5 Days: 676 pcs. - if ordered today
Total Price:
51.74 € *
Price list
Quantity
Price per unit*
1 pcs.
51.7412 €
2 pcs.
48.4092 €
5 pcs.
45.4699 €
10 pcs.
42.2688 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5-104549-9, AMP
Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 80 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: straight
- Number of positions: 80
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 1 A
- Centerline (Pitch): 1.27 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 80 pole | |
| Grid | 1.27 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 30 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
