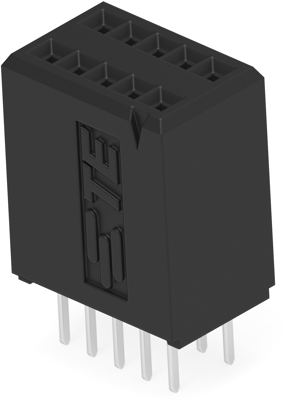

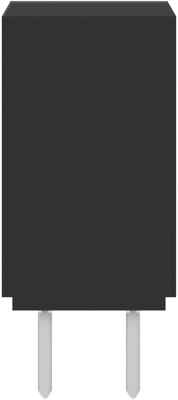

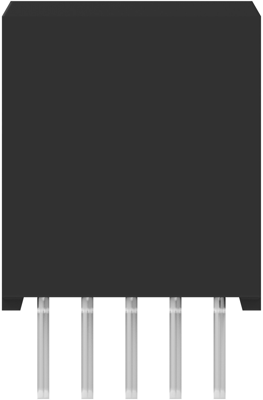

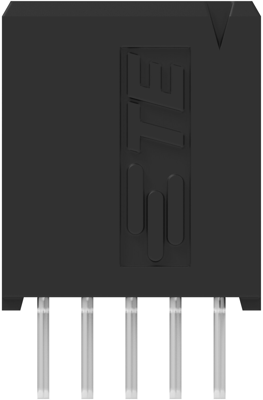

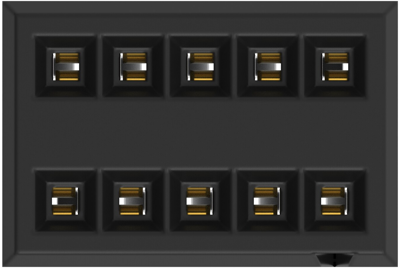

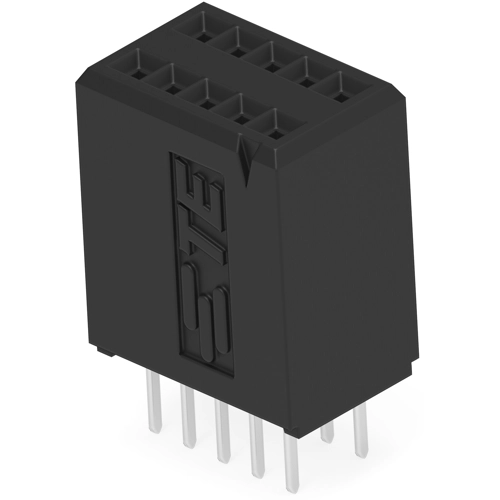

Board-to-Board Headers and Receptacles, 5-104078-3, AMP
PCB Connector Assembly Type: PCB Mount Receptacle, Connector & Contact Terminates To: Printed Circuit Board, Number of Rows: 2, PCB Mount Orientation: Vertical, Number of Positions: 10, Operating Voltage: 30 VAC, Contact Base Material: Copper Alloy, Contact Mating Area Plating Material: Gold, Contact Mating Area Plating Material Thickness: .762 µm, Contact Type: Socket, Contact Current Rating (Max): 4 A, Termination Post & Tail Length: 2.54 mm, Termination Method to Printed Circuit Board: Through Hole - Solder, PCB Mount Retention Type: Hold-Down Post, PCB Mount Retention: With, Centerline (Pitch): 1.27 mm, Housing Color: Black, Housing Material: Thermoplastic, Connector Height: 8.89 mm, Row-to-Row Spacing: 2.54 mm, Operating Temperature Range: -65 – 105 °C, Solder Process Feature: Board Standoff, Approved Standards: CSA LR7189,UL E28476, UL Flammability Rating: UL 94V-0, Packaging Quantity: 70, Packaging Method: Box & Tube,Tube
