5-104071-1 | AMP

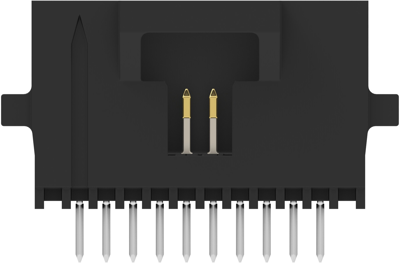

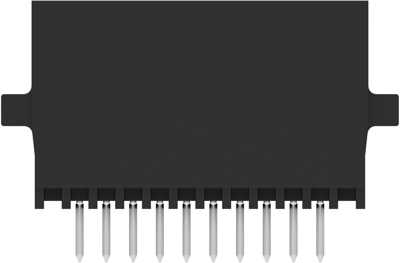

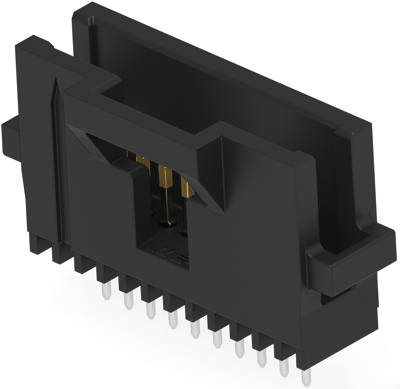

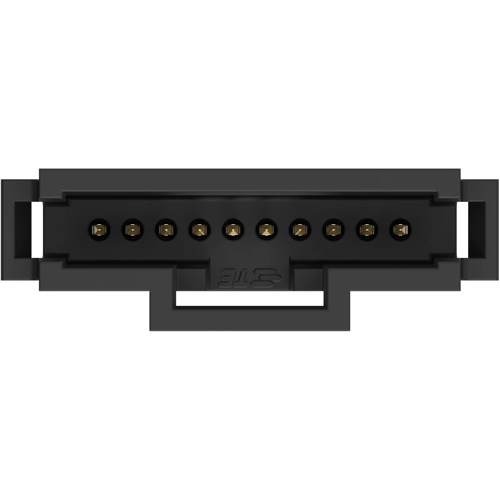

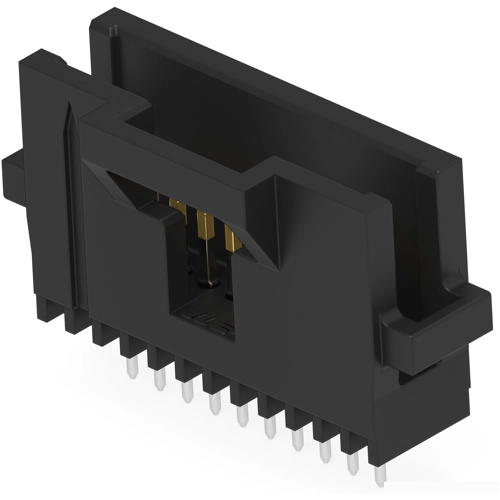

Pin header, 10 pole, pitch 1.27 mm, straight, black, 5-104071-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8798 € *
Available in 12 Days: 4,564 pcs. - if ordered today
Total Price:
2.88 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8798 €
10 pcs.
2.6656 €
50 pcs.
2.4871 €
100 pcs.
2.3205 €
*incl. VAT plus shipping costs
Subject to prior sale
Pin header, 5-104071-1, AMP
PCB Mount Header, Vertical, Board-to-Board, 10-Positions, 1.27 mm Centerline, Fully Shrouded, Gold (Au).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 10 pole | |
| Grid | 1.27 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 30 V | |
| Rated current | 1 A | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
