5-104068-5 | AMP

Pin header, 50 pole, pitch 1.27 mm, straight, black, 5-104068-5

Order No.: 37P7831
EAN: 4099889969245
MPN:
5-104068-5
Series: AMPMODU

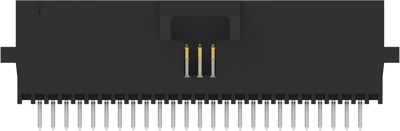

5-104068-5 AMP PCB Connection Systems Image 1

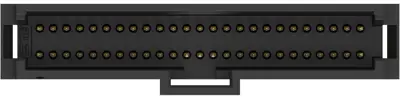

5-104068-5 AMP PCB Connection Systems Image 2

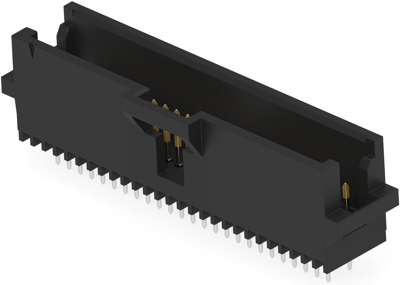

5-104068-5 AMP PCB Connection Systems Image 3

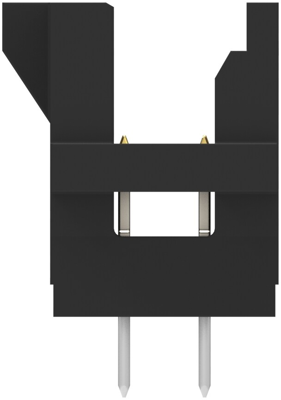

5-104068-5 AMP PCB Connection Systems Image 4

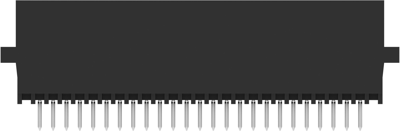

5-104068-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
13.9587 € *
Available in 5 Days: 1,427 pcs. - if ordered today
Total Price:
13.96 € *
Price list
Quantity
Price per unit*
1 pcs.
13.9587 €
10 pcs.
12.9591 €
25 pcs.
12.1023 €
50 pcs.
10.9956 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 5-104068-5, AMP

Board-to-Board, Printed Circuit Board, Shrouded, Vertical, 50 Position

Technical Data

  • Contact Shape & Form: Round
  • Contact Type: Male
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 50
  • Operating Temperature Range: -65 – 105 °C
  • Rated current: 1 A
  • Centerline (Pitch): 1.27 mm
  • Row-to-Row Spacing: 2.54 mm [0.1 in]
  • PCB Mount Retention: Without
  • Sealable: No
Technical specifications
Filter Property Value
Version pin header
Contact type pin
Pin number 50 pole
Grid 1.27 mm
Connection solder pin
Orientation straight
Type of locking Yes
contact surface gold-plated
Connection plating tin-plated
Rated voltage 30 V
Rated current 1 A
Additional parts equipped
Number of rows 2
Breakable No
Colour black
Logistics
Property Value
Customs tariff number 85366990
Country of origin CN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
