5-103944-3 | AMP

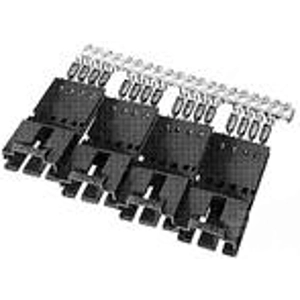

Pin header, 4 pole, pitch 2.54 mm, straight, black, 5-103944-3
Unit Price (€ / pc.)
3.2487 € *
Standard delivery time from the manufacturer is: 38 Weeks
Total Price:
3.25 € *
Price list
Quantity
Price per unit*
1 pcs.
3.2487 €
10 pcs.
3.0226 €
25 pcs.
2.8203 €
50 pcs.
2.5585 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 5-103944-3, AMP
Wire-to-Board, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Male
- Contact Base Material: Phosphor Bronze
- Housing Material: Thermoplastic
- Housing Color: black
- Number of positions: 4
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Number of rows | 1 | |
| Rated voltage | 267 V | |
| Pin number | 4 pole | |
| Orientation | straight | |
| Rated current | 3 A | |
| Contact type | pin | |
| contact surface | tin-plated | |
| Version | pin header | |
| Grid | 2.54 mm | |
| Connection | IDC connection | |
| Connection plating | tin-plated | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
