5-103911-5 | AMP

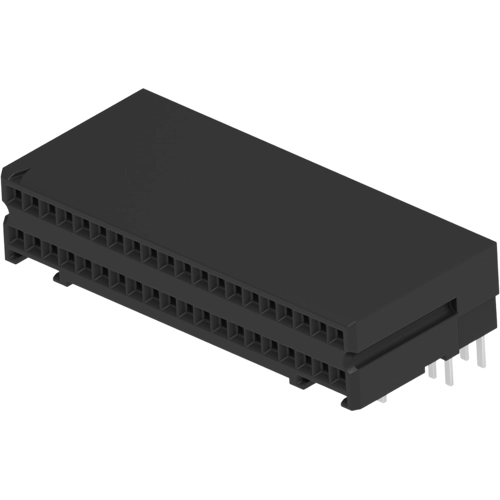

Socket header, 40 pole, pitch 1.27 mm, angled, black, 5-103911-5

Order No.: 59F814
MPN:
5-103911-5
Series: AMPMODU

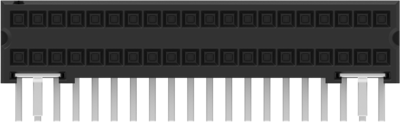

5-103911-5 AMP PCB Connection Systems Image 1

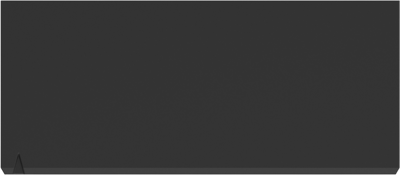

5-103911-5 AMP PCB Connection Systems Image 2

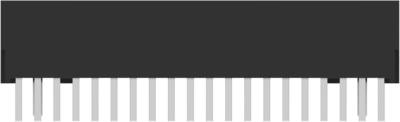

5-103911-5 AMP PCB Connection Systems Image 3

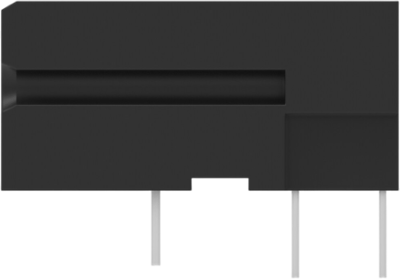

5-103911-5 AMP PCB Connection Systems Image 4

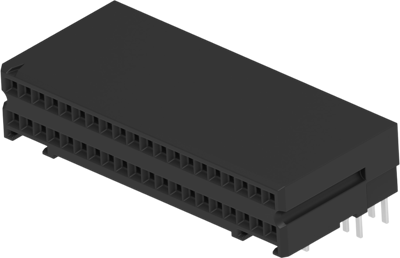

5-103911-5 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
11.0670 € *
Available in 5 Days: 405 pcs. - if ordered today
Total Price:
11.07 € *
Price list
Quantity
Price per unit*
1 pcs.
11.0670 €
10 pcs.
10.2935 €
50 pcs.
9.4724 €
100 pcs.
8.6156 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Mount Receptacle, 5-103911-5, AMP

PCB Mount Receptacle, Right Angle, Board-to-Board, 40 Position, 1.27 mm Centerline, Gold (Au), Through Hole - Solder, AMPMODU System 50.

Technical specifications
Connection plating tin-plated
Rated voltage 30 V
Version socket header
contact surface gold-plated
Connection solder connection
Contact type socket
Rated current 3.6 A
Pin number 40 pole
Colour black
Type of locking Yes
Orientation angled
Number of rows 2
Grid 1.27 mm
Logistics
Country of origin MX
Customs tariff number 85366990
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
