5-103795-8 | AMP

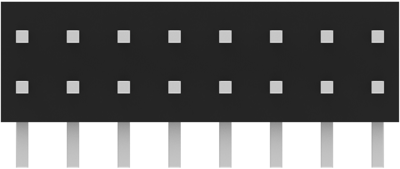

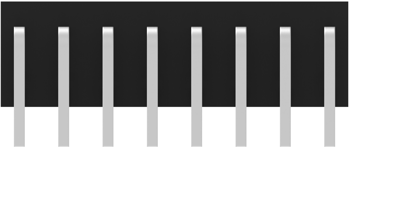

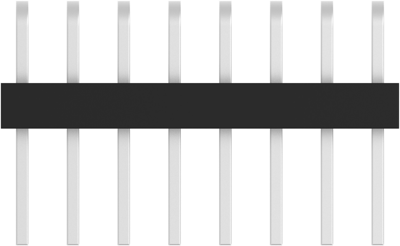

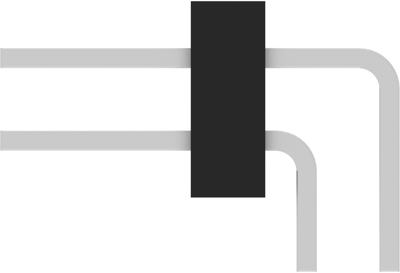

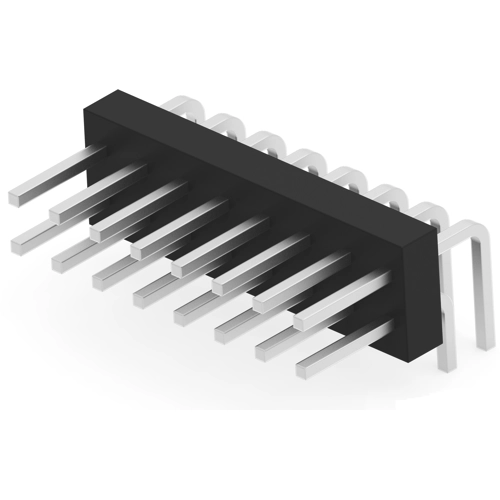

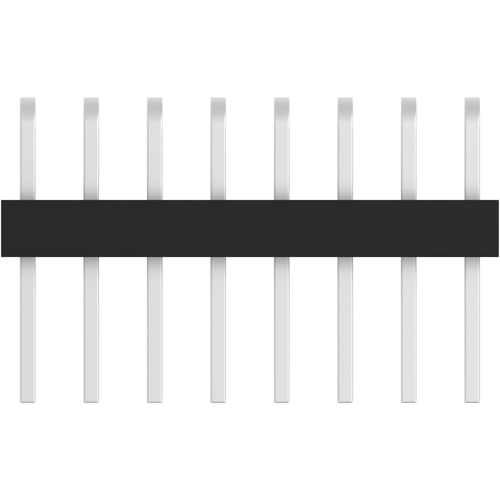

Pin header, 16 pole, pitch 2.54 mm, angled, black, 5-103795-8
Order No.: 59F516
MPN:
5-103795-8
Unit Price (€ / pc.)
7.1400 € *
Available in 5 Days: 300 pcs. - if ordered today
Total Price:
7.14 € *
Price list
Quantity
Price per unit*
1 pcs.
7.1400 €
10 pcs.
6.6283 €
25 pcs.
6.1880 €
50 pcs.
5.6287 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, 5-103795-8, AMP
PCB mount header, Right angle, Board-to-Board, 16 Positions, 2.54 mm centerline, Breakaway, Tin (Sn), Through Hole-Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of rows | 2 | |
| Grid | 2.54 mm | |
| Orientation | angled | |
| Pin number | 16 pole | |
| Connection | solder connection | |
| Type of locking | Yes | |
| Colour | black | |
| Rated current | 3 A | |
| Contact type | pin | |
| Version | pin header | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Rated voltage | 30 V |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366930 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
