5-103735-1 | AMP

Pin header, 2 pole, pitch 2.54 mm, straight, black, 5-103735-1

Order No.: 71F5540
EAN: 4099891009779
MPN:
5-103735-1
5-0103735-1
Series: AMPMODU

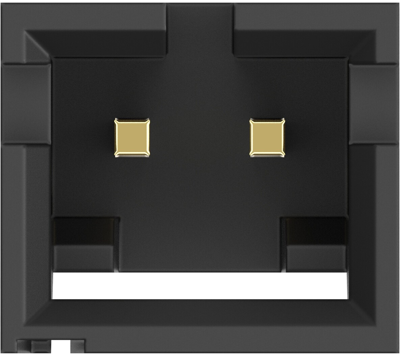

5-103735-1 AMP PCB Connection Systems Image 1

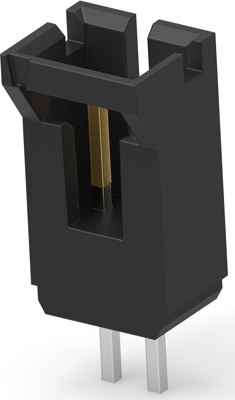

5-103735-1 AMP PCB Connection Systems Image 2

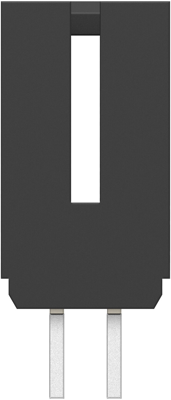

5-103735-1 AMP PCB Connection Systems Image 3

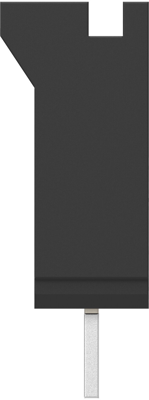

5-103735-1 AMP PCB Connection Systems Image 4

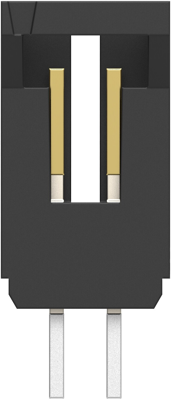

5-103735-1 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.1900 € *
Available: 160 pcs.
Available in 5 Days: 458 pcs. - if ordered today
Total Price:
5.95 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1900 €
10 pcs.
1.1067 €
25 pcs.
1.0234 €
50 pcs.
0.9282 €
*incl. VAT plus shipping costs
Subject to prior sale

Male connectors for PCBs, type 5-0103735.

Straight, with pin protection, polarized and interlocking.

Certifications: UL and CSA

Housing: thermoplastic, black, according to UL 94 V-0

Contacts: copper alloy, selective gold-plating on the contact surface, tinned connector surface

Type: 5 - 0103735 - 1, 2 - pole

Technical specifications
Filter Property Value
Grid 2.54 mm
Breakable No
Contact type pin
Connection plating tin-plated
contact surface gold-plated
Version pin header
Rated current 3 A
Orientation straight
Type of locking Yes
Additional parts equipped
Number of rows 1
Colour black
Pin number 2 pole
Connection solder pin
Logistics
Property Value
Country of origin CN
Customs tariff number 85366930
Original Packaging Bar with 70 pieces
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
