5-103673-7 | AMP

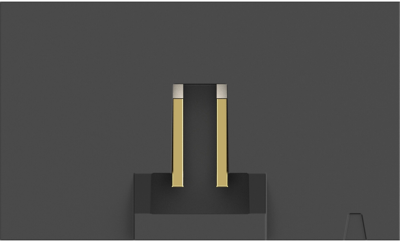

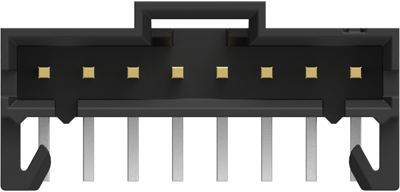

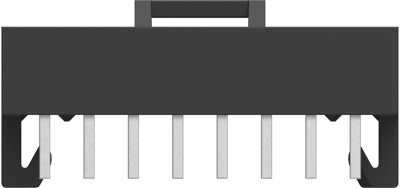

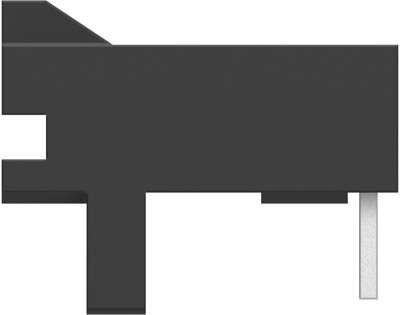

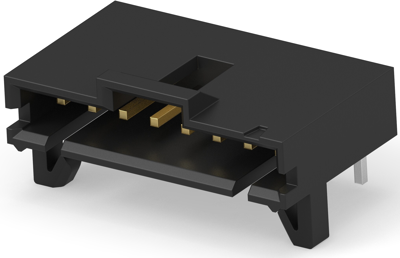

Pin header, 8 pole, pitch 2.54 mm, angled, black, 5-103673-7
Unit Price (€ / pc.)
0.5236 € *
Standard delivery time from the manufacturer is: 33 Weeks
PCB Connection System, 5-103673-7, AMP
Wire-to-Board, Printed Circuit Board, Shrouded, Right Angle, 8 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Thermoplastic
- Housing Color: black
- Orientation: angled
- Number of positions: 8
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Insulation Resistance: 5000 MΩ
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Colour | black | |
| Breakable | No | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 8 pole | |
| Version | pin header | |
| Additional parts | equipped | |
| Orientation | angled | |
| Connection | solder pin | |
| Contact type | pin | |
| Number of rows | 1 |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
