5-103168-8 | AMP

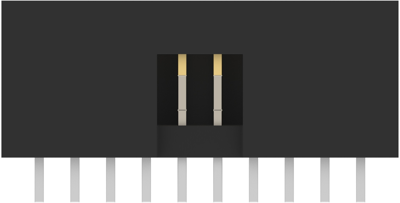

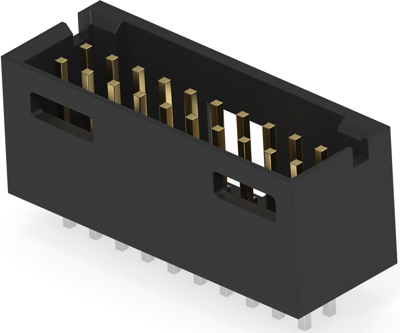

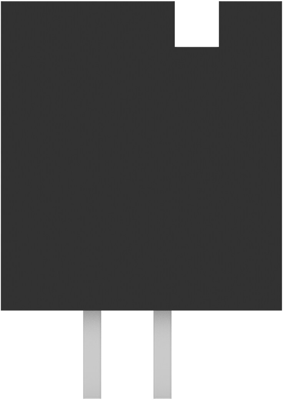

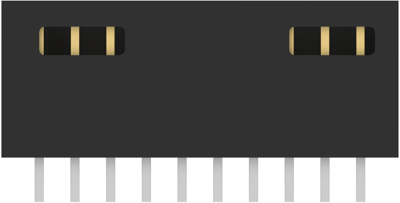

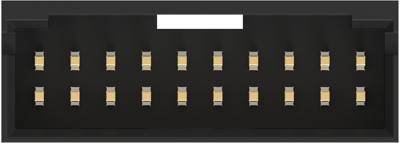

Pin header, 20 pole, pitch 2.54 mm, straight, black, 5-103168-8
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.8675 € *
Available in 12 Days: 2,099 pcs. - if ordered today
Pin header, 5-103168-8, AMP
PCB Mount Header, Vertical, Board-to-Board, 20-Positions, 2.54 mm Centerline, Fully Shrouded, Gold (Au), Through Hole - Solder.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 20 pole | |
| Grid | 2.54 mm | |
| Connection | solder pin | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated current | 3 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Breakable | No | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | GB |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
| Electrical equipment take-back |  |
