5-102694-4 | AMP

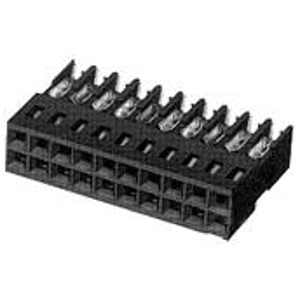

Socket header, 12 pole, pitch 2.54 mm, straight, black, 5-102694-4
Unit Price (€ / pc.)
17.5049 € *
Standard delivery time from the manufacturer is: 50 Weeks
PCB Connection System, 5-102694-4, AMP
Wire-to-Board, Wire & Cable, Shrouded, 12 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Housing Material: PBT
- Housing Color: black
- Number of positions: 12
- Operating Temperature Range: -65 – 105 °C [-85 – 221 °F]
- Rated current: 3 A
- Centerline (Pitch): 2.54 mm
- Row-to-Row Spacing: 2.54 mm [0.1 in]
- Sealable: No
- Contact Layout: Matrix
Technical specifications
| Colour | black | |
| Breakable | No | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Grid | 2.54 mm | |
| Connection plating | tin-plated | |
| Pin number | 12 pole | |
| Version | socket header | |
| Additional parts | equipped | |
| Orientation | straight | |
| Connection | IDC connection | |
| Contact type | socket | |
| Number of rows | 2 |
Download
Logistics
| Country of origin | SG |
| Customs tariff number | 85366910 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
