480763-9 | AMP

Plug housing, 5 pole, pitch 6.35 mm, straight, black, 480763-9

Order No.: 35P4984
EAN: 4099889936292
MPN:
480763-9

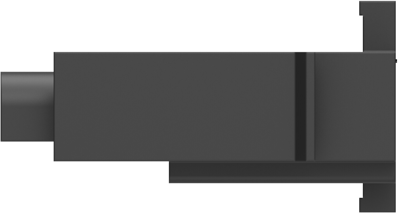

480763-9 AMP PCB Connection Systems Image 1

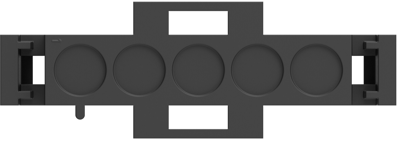

480763-9 AMP PCB Connection Systems Image 2

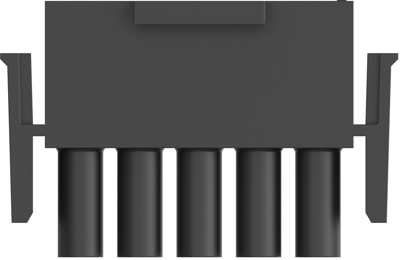

480763-9 AMP PCB Connection Systems Image 3

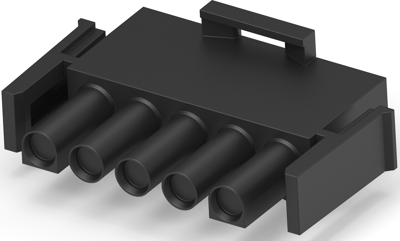

480763-9 AMP PCB Connection Systems Image 4

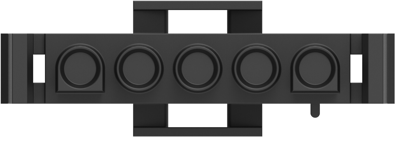

480763-9 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.2689 € *
Standard delivery time from the manufacturer is: 19 Weeks
Total Price:
1.34 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2689 €
10 pcs.
0.2487 €
25 pcs.
0.2321 €
50 pcs.
0.2106 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB Connection System, 480763-9, AMP

Wire-to-Board, Wire-to-Wire, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Housing Material: Nylon
  • Housing Color: black
  • Number of positions: 5
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Centerline (Pitch): 6.35 mm
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Grid 6.35 mm
Contact type socket/pin
Version plug housing
Rated current 36 A
Rated voltage 600 V
Orientation straight
Type of locking Yes
Additional parts unequipped
Number of rows 1
Colour black
Pin number 5 pole
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85472000
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
