440133-5 | AMP

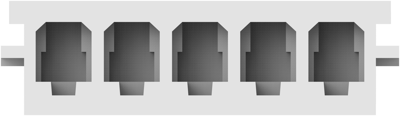

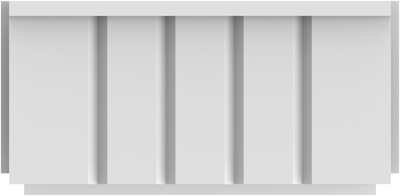

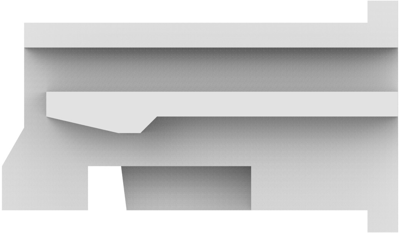

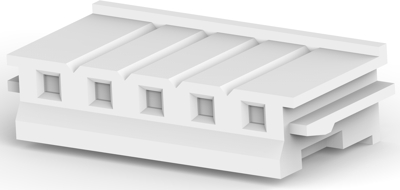

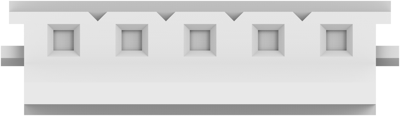

Socket housing, 5 pole, pitch 2.5 mm, straight, natural, 440133-5
Order No.: 37P1106
EAN: 4099889951899
MPN:
440133-5
Unit Price (€ / pc.)
0.3570 € *
Available in 5 Days: 12,000 pcs. - if ordered today
Total Price:
1.79 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3570 €
10 pcs.
0.3332 €
25 pcs.
0.3094 €
50 pcs.
0.2808 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 440133-5, AMP
Wire-to-Wire, Wire & Cable, 5 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 5
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 2.5 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.5 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 5 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85389011 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
