440133-4 | AMP

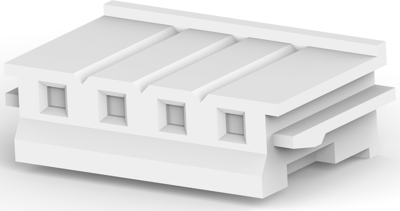

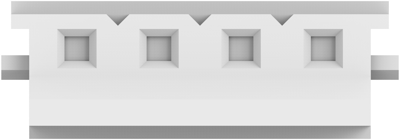

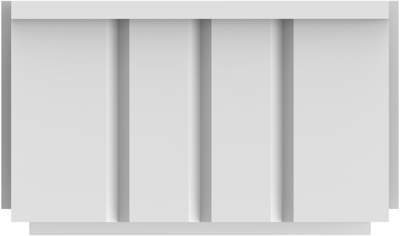

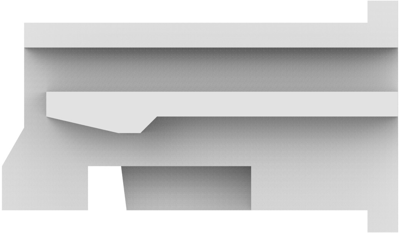

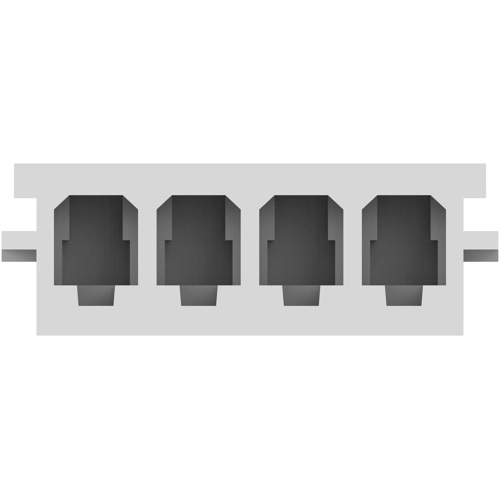

Socket housing, 4 pole, pitch 2.5 mm, straight, natural, 440133-4
Order No.: 37P1105
EAN: 4099889951882
MPN:
440133-4
Unit Price (€ / pc.)
0.1190 € *
Standard delivery time from the manufacturer is: 9 Weeks
PCB Connection System, 440133-4, AMP
Wire-to-Wire, Wire & Cable, 4 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Phosphor Bronze
- Housing Material: Nylon 66
- Housing Color: natural
- Number of positions: 4
- Operating Temperature Range: -25 – 105 °C [-13 – 221 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 2.5 mm
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 4 pole | |
| Contact type | socket | |
| Colour | natural | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Connection | crimp connection | |
| Grid | 2.5 mm | |
| Orientation | straight | |
| Version | socket housing | |
| Additional parts | unequipped | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389011 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
