440129-7 | AMP

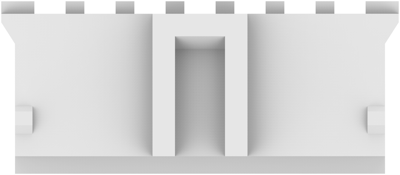

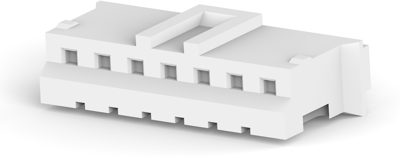

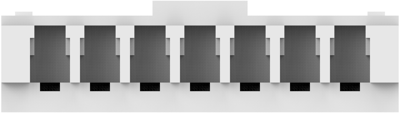

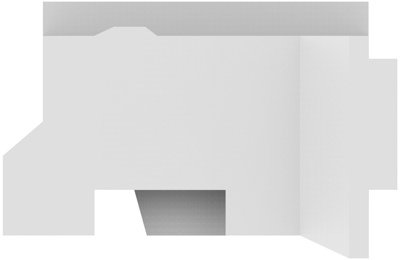

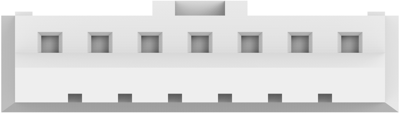

Socket housing, 7 pole, pitch 2 mm, straight, natural, 440129-7
Order No.: 37P1010
EAN: 4099889951202
MPN:
440129-7
Unit Price (€ / pc.)
0.2130 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
21.30 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2130 €
250 pcs.
0.1964 €
500 pcs.
0.1833 €
1000 pcs.
0.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 440129-7, AMP
Wire-to-Board, Wire & Cable, 7 Position
Technical Data
- Connector Mounting Type: Cable Mount (Free-Hanging)
- Contact Type: Female
- Contact Base Material: Copper Alloy
- Housing Material: Thermoplastic
- Housing Color: natural
- Number of positions: 7
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Insulation Resistance: 1000 MΩ
- Centerline (Pitch): 2 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | socket | |
| Version | socket housing | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 7 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
