440129-5 | AMP

Socket housing, 5 pole, pitch 2 mm, straight, natural, 440129-5

Order No.: 37P1008
EAN: 4099889951189
MPN:
440129-5
AMP

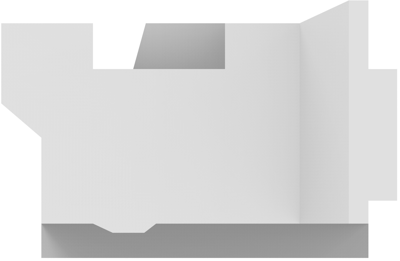

440129-5 AMP PCB Connection Systems Image 1

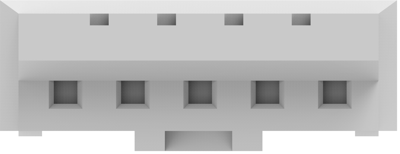

440129-5 AMP PCB Connection Systems Image 2

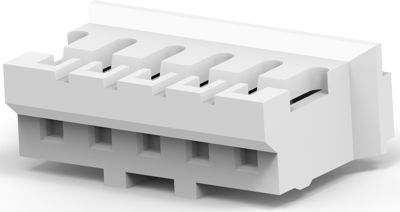

440129-5 AMP PCB Connection Systems Image 3

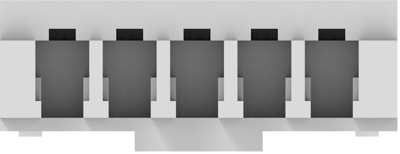

440129-5 AMP PCB Connection Systems Image 4

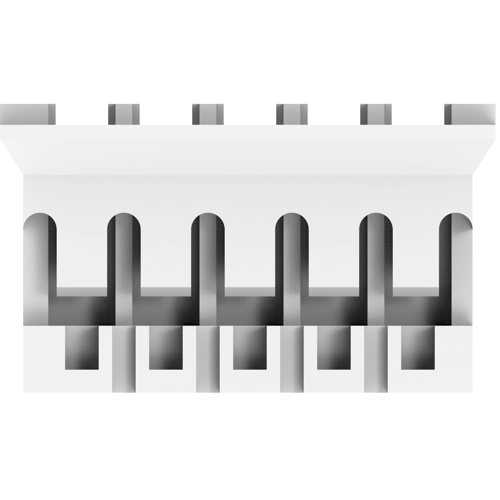

440129-5 AMP PCB Connection Systems Image 5
Image may differ
Print
Key Specification:
Version socket housing
Contact type socket
Pin number 5 pole
Grid 2 mm
Connection crimp connection

Ordering Information:

not to be sold to private customers
Download Datasheet Technical specifications
Unit Price (€ / pc.)
0.1630 € *
Available in 5 Days: 3,092 pcs. - if ordered today
Total Price:
179.33 € *
*incl. VAT plus shipping costs
Subject to prior sale
1100 pcs.
0.1630 €
Description
Technical specifications
Download
Logistics
Compliance

PCB Connection System, 440129-5, AMP

Wire-to-Board, Wire & Cable, 5 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 5
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Pin number 5 pole
Contact type socket
Colour natural
Rated current 3 A
Rated voltage 250 V
Connection crimp connection
Grid 2 mm
Orientation straight
Version socket housing
Additional parts unequipped
Number of rows 1
Articles of same specification 0
Logistics
Customs tariff number 85366990
Country of origin US
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
