440129-2 | AMP

Socket housing, 2 pole, pitch 2 mm, straight, natural, 440129-2

Order No.: 37P1005
EAN: 4099889951158
MPN:
440129-2

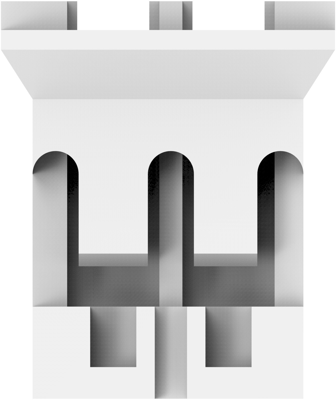

440129-2 AMP PCB Connection Systems Image 1

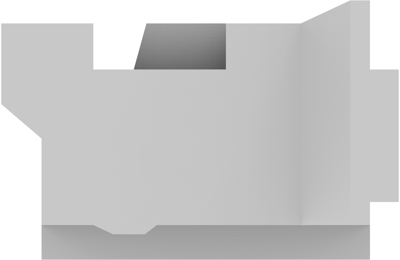

440129-2 AMP PCB Connection Systems Image 2

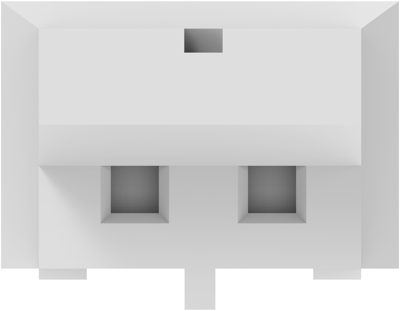

440129-2 AMP PCB Connection Systems Image 3

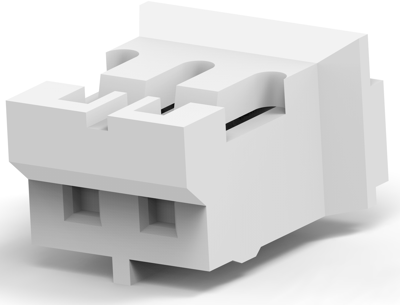

440129-2 AMP PCB Connection Systems Image 4

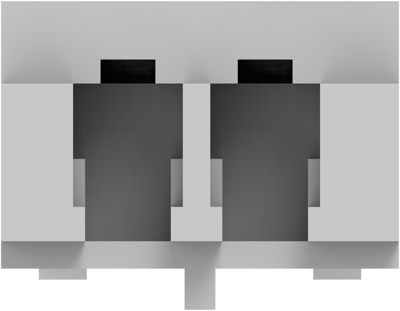

440129-2 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.0381 € *
Available in 5 Days: 166,296 pcs. - if ordered today
Total Price:
190.40 € *
*incl. VAT plus shipping costs
Subject to prior sale
5000 pcs.
0.0381 €

PCB Connection System, 440129-2, AMP

Wire-to-Board, Wire & Cable, 2 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Female
  • Contact Base Material: Copper Alloy
  • Housing Material: Thermoplastic
  • Housing Color: natural
  • Number of positions: 2
  • Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
  • Insulation Resistance: 1000 MΩ
  • Centerline (Pitch): 2 mm
  • PCB Mount Retention: Without
  • Sealable: No
  • Contact Layout: Inline
Technical specifications
Filter Property Value
Contact type socket
Pin number 2 pole
Grid 2 mm
Colour natural
Version socket housing
Connection crimp connection
Rated voltage 250 V
Rated current 3 A
Orientation straight
Number of rows 1
Additional parts unequipped
Logistics
Property Value
Customs tariff number 85366990
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
