440055-5 | AMP

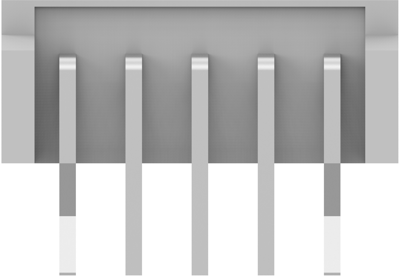

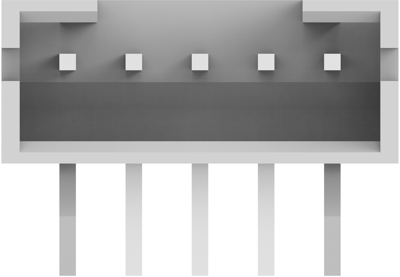

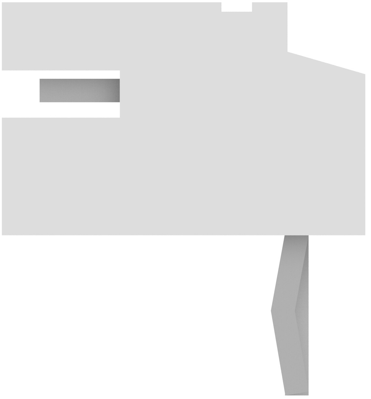

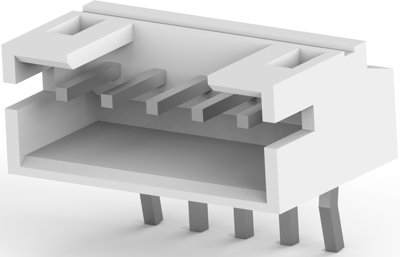

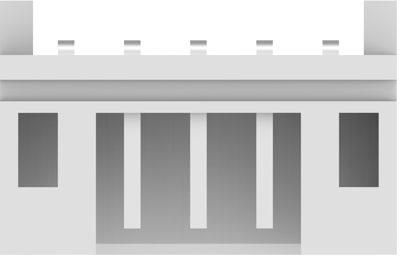

Pin header, 5 pole, pitch 2 mm, angled, natural, 440055-5
Order No.: 36P9990
EAN: 4099889951103
MPN:
440055-5
Unit Price (€ / pc.)
0.2130 € *
Available in 5 Days: 214,533 pcs. - if ordered today
Total Price:
21.30 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2130 €
250 pcs.
0.1964 €
500 pcs.
0.1833 €
1000 pcs.
0.1654 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 440055-5, AMP
Wire-to-Board, Printed Circuit Board, Partially Shrouded, Right Angle, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66 GF
- Housing Color: natural
- Orientation: angled
- Number of positions: 5
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 3 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | angled | |
| Additional parts | equipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 5 pole | |
| Connection | solder pin |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
