440054-5 | AMP

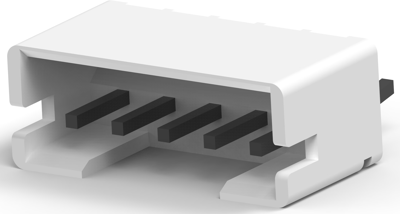

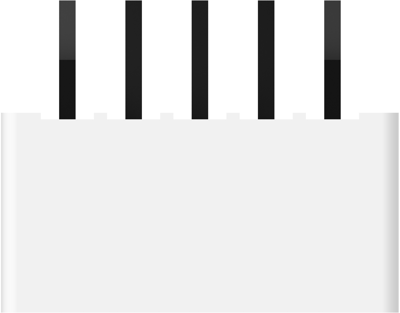

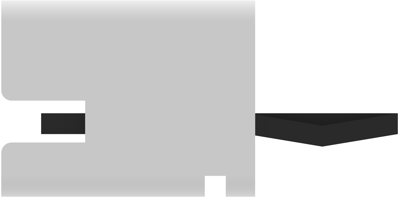

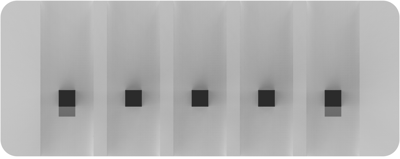

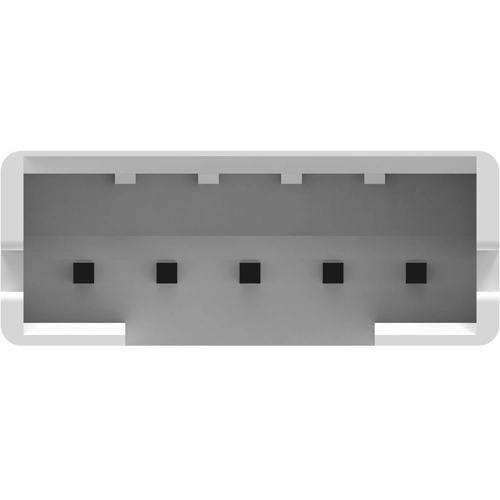

Pin header, 5 pole, pitch 2 mm, straight, natural, 440054-5
Order No.: 36P9991
EAN: 4099889951110
MPN:
440054-5
Unit Price (€ / pc.)
0.2083 € *
Available in 5 Days: 16,300 pcs. - if ordered today
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2083 €
250 pcs.
0.1928 €
500 pcs.
0.1785 €
1000 pcs.
0.1607 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 440054-5, AMP
Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 5 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66 GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 5
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 3 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 5 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
