440054-3 | AMP

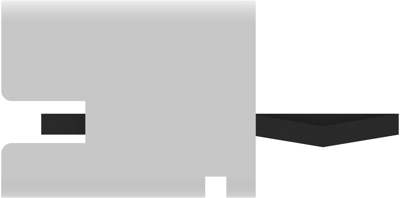

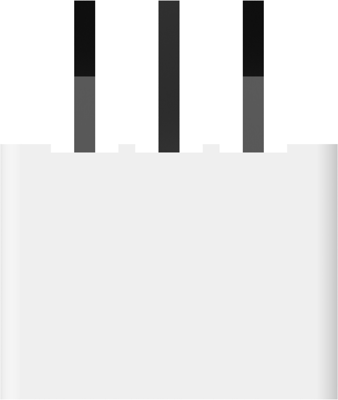

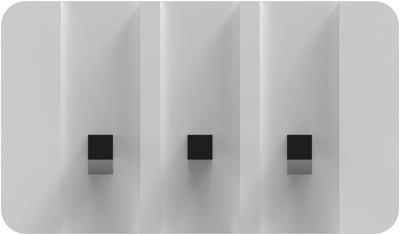

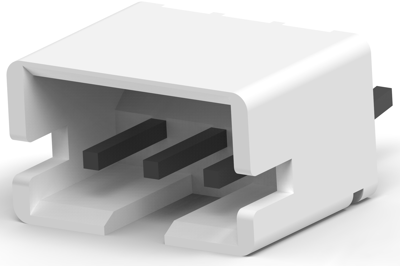

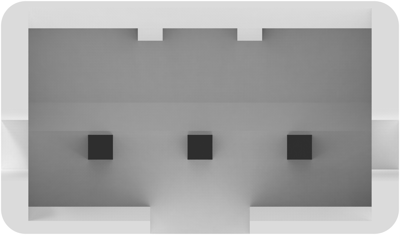

Pin header, 3 pole, pitch 2 mm, straight, natural, 440054-3
Order No.: 36P9987
EAN: 4099889951073
MPN:
440054-3
Unit Price (€ / pc.)
0.1535 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
100 pcs.
0.1535 €
250 pcs.
0.1416 €
500 pcs.
0.1321 €
1000 pcs.
0.1190 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 440054-3, AMP
Wire-to-Board, Printed Circuit Board, Partially Shrouded, Vertical, 3 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Contact Base Material: Brass
- Housing Material: Nylon 66 GF
- Housing Color: natural
- Orientation: straight
- Number of positions: 3
- Operating Temperature Range: -25 – 85 °C [-13 – 185 °F]
- Rated current: 3 A
- Centerline (Pitch): 2 mm
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2 mm | |
| Contact type | pin | |
| Connection plating | tin-plated | |
| contact surface | tin-plated | |
| Version | pin header | |
| Rated current | 3 A | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Additional parts | unequipped | |
| Number of rows | 1 | |
| Colour | natural | |
| Pin number | 3 pole | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
