4-794637-4 | AMP
Pin header, 14 pole, pitch 3 mm, straight, black, 4-794637-4
Order No.: 34P9247
EAN: 4099889917642
MPN:
4-794637-4
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.6775 € *
Standard delivery time from the manufacturer is: 24 Weeks
Pin header, 4-794637-4, AMP

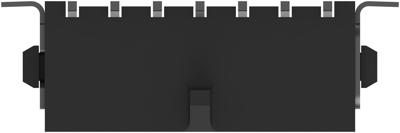

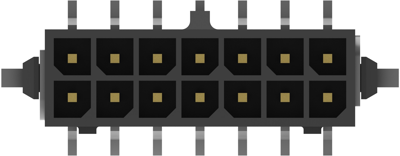

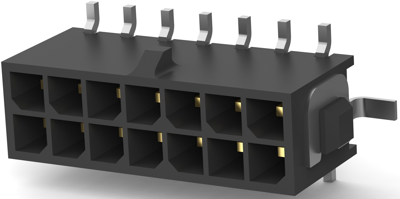

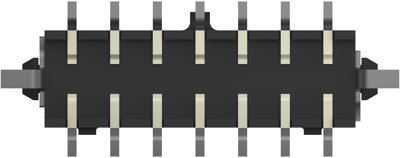

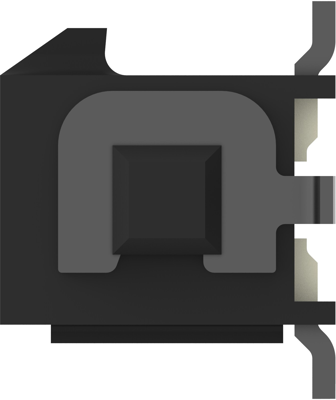

PCB Mount Header, Vertical, Wire-to-Board, 14-Positions, 3 mm Centerline, Fully Shrouded, Gold (Au), Surface Mount, Power.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 14 pole | |
| Grid | 3 mm | |
| Connection | SMD | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | gold-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
