4-794636-2 | AMP

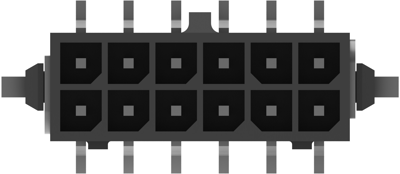

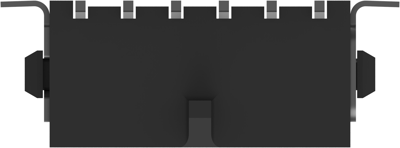

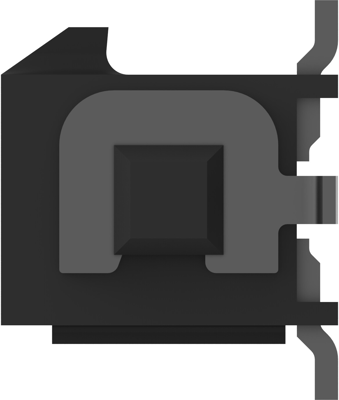

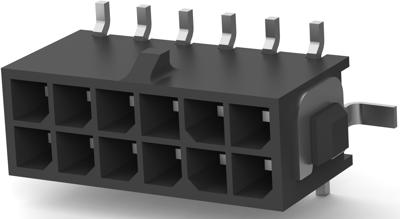

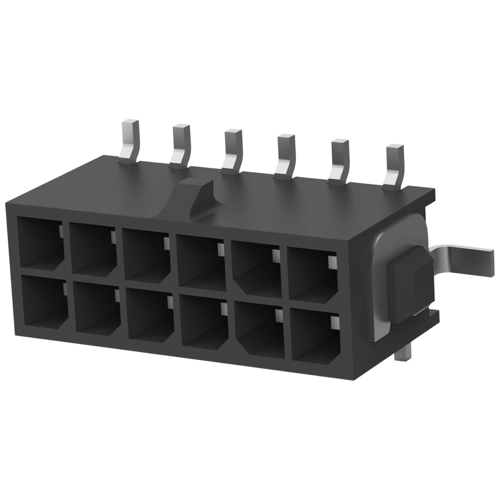

Pin header, 12 pole, pitch 3 mm, straight, black, 4-794636-2
Unit Price (€ / pc.)
2.9750 € *
Available: 160 pcs.
Available in 5 Days: 1,400 pcs. - if ordered today
Total Price:
2.98 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9750 €
10 pcs.
2.7608 €
25 pcs.
2.5823 €
50 pcs.
2.3443 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB Connection System, 4-794636-2, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: High Temperature Nylon
- Housing Color: black
- Orientation: straight
- Number of positions: 12
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Connection | SMD | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Type of locking | Yes | |
| contact surface | tin-plated | |
| Version | pin header | |
| Connection plating | tin-plated | |
| Pin number | 12 pole | |
| Contact type | pin | |
| Grid | 3 mm | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366910 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
