4-794633-8 | AMP

Pin header, 18 pole, pitch 3 mm, straight, black, 4-794633-8

Order No.: 34P9270
EAN: 4099889917833
MPN:
4-794633-8

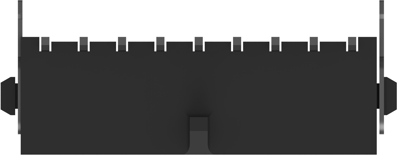

4-794633-8 AMP PCB Connection Systems Image 1

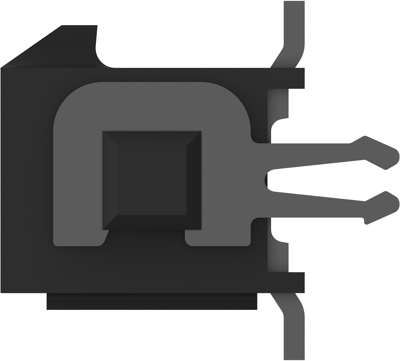

4-794633-8 AMP PCB Connection Systems Image 2

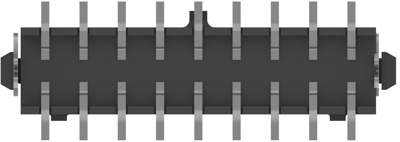

4-794633-8 AMP PCB Connection Systems Image 3

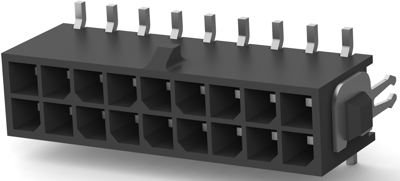

4-794633-8 AMP PCB Connection Systems Image 4

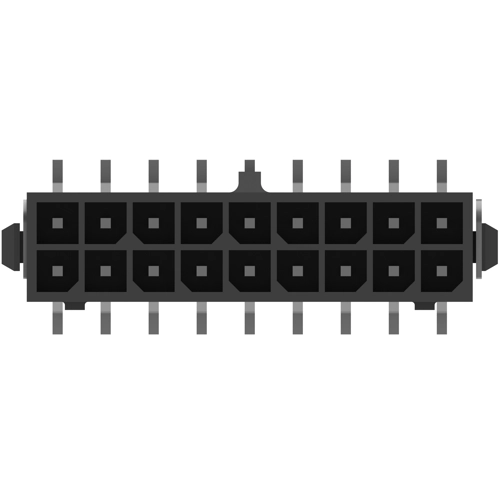

4-794633-8 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
3.2249 € *
Standard delivery time from the manufacturer is: 22 Weeks
Total Price:
1,128.72 € *
*incl. VAT plus shipping costs
Subject to prior sale
350 pcs.
3.2249 €

PCB Connection System, 4-794633-8, AMP

Wire-to-Board, Printed Circuit Board, Vertical, 18 Position

Technical Data

  • Connector Mounting Type: Board Mount
  • Contact Type: Male
  • Housing Material: High Temperature Nylon
  • Housing Color: black
  • Orientation: straight
  • Number of positions: 18
  • Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 3 mm
  • Row-to-Row Spacing: 3 mm [0.118 in]
  • PCB Mount Retention: With
  • Sealable: No
Technical specifications
Colour black
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 3 mm
Connection plating tin-plated
Pin number 18 pole
Version pin header
Additional parts equipped
Orientation straight
Connection SMD
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin MX
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
