4-794632-0 | AMP

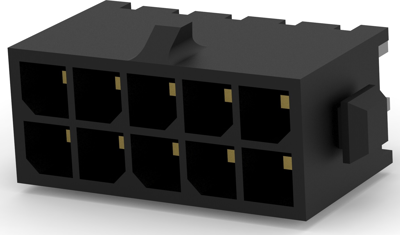

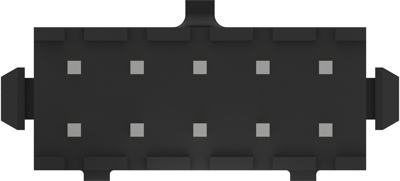

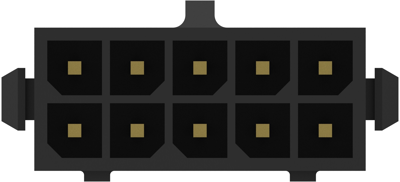

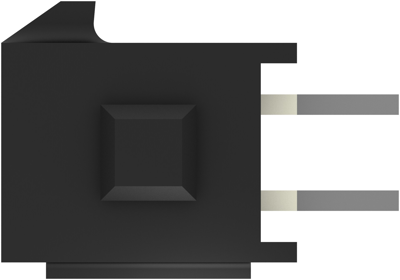

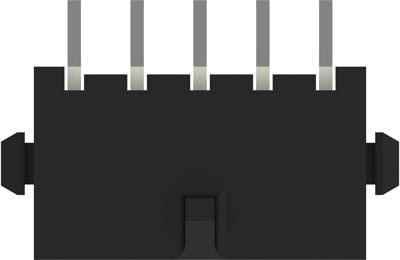

Pin header, 10 pole, pitch 3 mm, straight, black, 4-794632-0
Unit Price (€ / pc.)
2.8441 € *
Available in 5 Days: 1,697 pcs. - if ordered today
PCB Connection System, 4-794632-0, AMP
Wire-to-Board, Printed Circuit Board, Vertical, 10 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Type: Male
- Housing Material: Nylon
- Housing Color: black
- Orientation: straight
- Number of positions: 10
- Operating Temperature Range: -40 – 105 °C [-40 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 3 mm
- Row-to-Row Spacing: 3 mm [0.118 in]
- PCB Mount Retention: With
- Sealable: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated current | 5 A | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Version | pin header | |
| Orientation | straight | |
| Connection plating | tin-plated | |
| Grid | 3 mm | |
| Type of locking | Yes | |
| Number of rows | 2 | |
| Contact type | pin | |
| Colour | black | |
| Pin number | 10 pole | |
| Connection | solder pin | |
| Rated voltage | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
