4-647166-2 | AMP

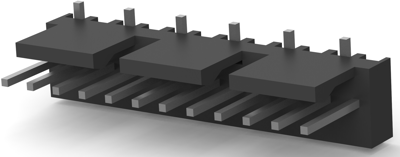

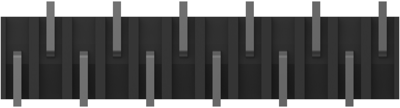

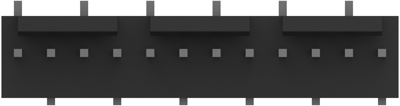

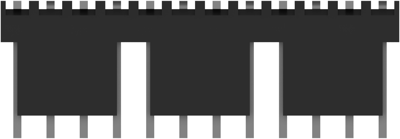

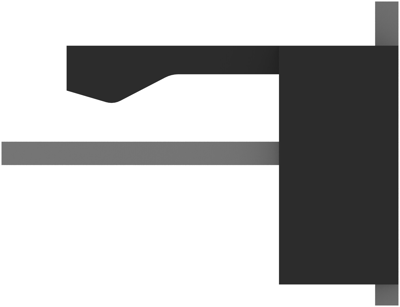

Pin header, 12 pole, pitch 2.54 mm, straight, black, 4-647166-2
Order No.: 35P1832
EAN: 4099889928433
MPN:
4-647166-2
Unit Price (€ / pc.)
2.2967 € *
Standard delivery time from the manufacturer is: 17 Weeks
PCB Connection System, 4-647166-2, AMP
Wire-to-Board, Printed Circuit Board, Unshrouded, Vertical, 12 Position
Technical Data
- Connector Mounting Type: Board Mount
- Contact Base Material: Copper Alloy
- Housing Material: Nylon 4/6
- Housing Color: black
- Orientation: straight
- Number of positions: 12
- Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
- Rated current: 5 A
- Centerline (Pitch): 2.54 mm
- PCB Mount Retention: Without
- Sealable: No
- Contact Layout: Inline
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | tin-plated | |
| Contact type | pin | |
| Connection | SMD | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Orientation | straight | |
| Number of rows | 1 | |
| Type of locking | Yes | |
| Pin number | 12 pole | |
| Additional parts | equipped | |
| Colour | black | |
| Version | pin header | |
| Rated current | 5 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366910 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
