4-647002-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, blue, 4-647002-0

Order No.: 71P9132
EAN: 4099891734107
MPN:
4-647002-0
Series: MTA-100

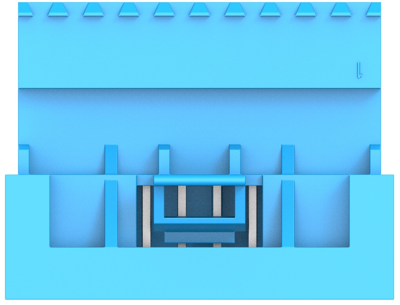

4-647002-0 AMP PCB Connection Systems Image 1

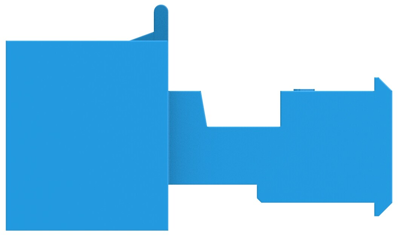

4-647002-0 AMP PCB Connection Systems Image 2

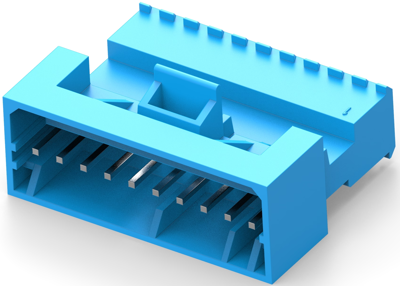

4-647002-0 AMP PCB Connection Systems Image 3

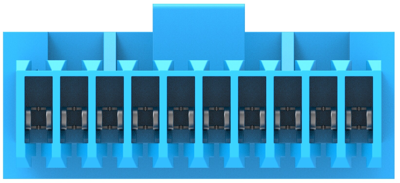

4-647002-0 AMP PCB Connection Systems Image 4

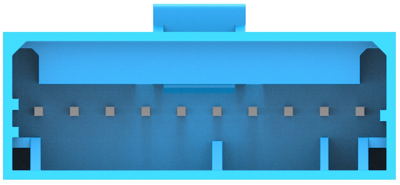

4-647002-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
1.9873 € *
Available in 5 Days: 1,075 pcs. - if ordered today
Total Price:
198.73 € *
Price list
Quantity
Price per unit*
100 pcs.
1.9873 €
250 pcs.
1.9397 €
*incl. VAT plus shipping costs
Subject to prior sale

Connector assembly, 4-647002-0, AMP

The 4-647002-0 is a mount header connector that accepts discrete and ribbon cable wire size ranging from 22-28 AWG with maximum insulation outside diameter of 0.060 for terminating single wire.

Features

  • One-step assembly
  • No wire stripping
  • No contact damage
  • Reduced wiring errors
  • Simpler tooling
  • Simple maintenance and repair
Technical specifications
Colour blue
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type tab
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
