4-647000-0 | AMP

Pin header, 10 pole, pitch 2.54 mm, straight, red, 4-647000-0

Order No.: 35P2184
EAN: 4099889930832
MPN:
4-647000-0
Series: MTA-100

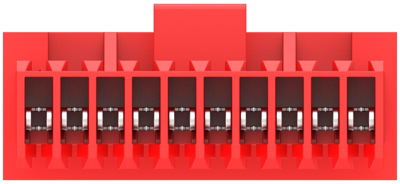

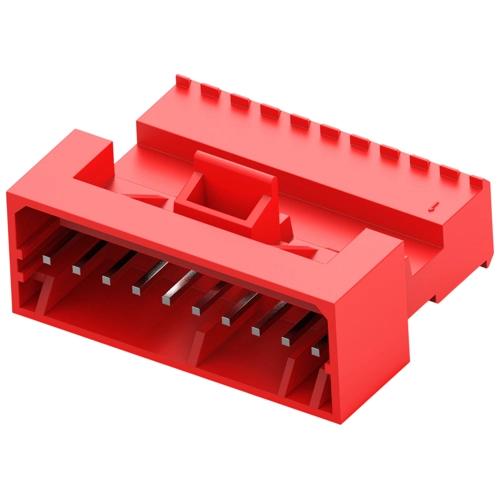

4-647000-0 AMP PCB Connection Systems Image 1

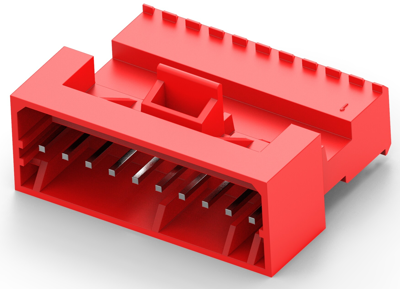

4-647000-0 AMP PCB Connection Systems Image 2

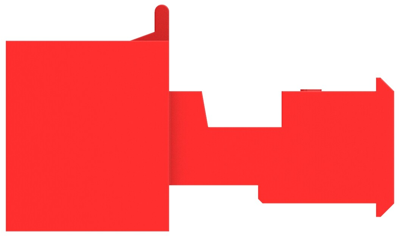

4-647000-0 AMP PCB Connection Systems Image 3

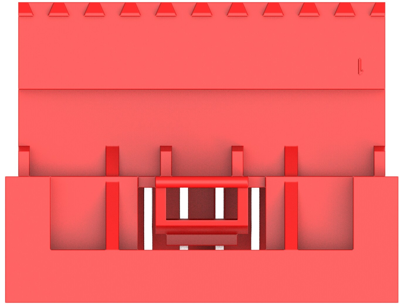

4-647000-0 AMP PCB Connection Systems Image 4

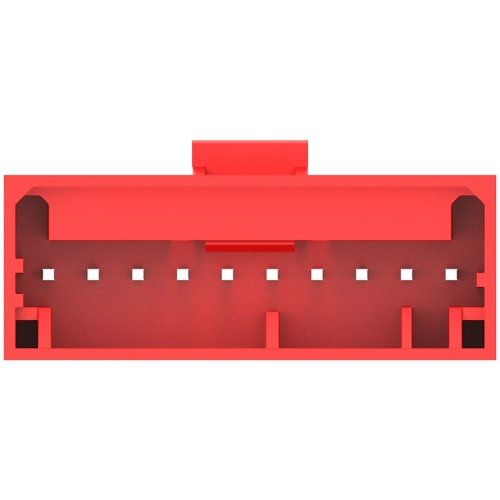

4-647000-0 AMP PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
0.9639 € *
Standard delivery time from the manufacturer is: 15 Weeks
Total Price:
722.93 € *
*incl. VAT plus shipping costs
Subject to prior sale
750 pcs.
0.9639 €

PCB Connection System, 4-647000-0, AMP

Wire-to-Wire, Wire & Cable, 10 Position

Technical Data

  • Connector Mounting Type: Cable Mount (Free-Hanging)
  • Contact Type: Tab
  • Housing Material: Nylon 6/6
  • Housing Color: red
  • Number of positions: 10
  • Operating Temperature Range: -55 – 105 °C [-67 – 221 °F]
  • Rated current: 5 A
  • Centerline (Pitch): 2.54 mm
  • Sealable: No
  • Contact Layout: In-line
Technical specifications
Colour red
Type of locking Yes
contact surface tin-plated
Rated current 5 A
Grid 2.54 mm
Connection plating tin-plated
Pin number 10 pole
Version pin header
Additional parts equipped
Orientation straight
Connection IDC connection
Contact type pin
Rated voltage 250 V
Number of rows 1
Logistics
Country of origin MX
Customs tariff number 85366910
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
